Twine Arm Timing (560M)
Twine arms can move unexpectedly. Avoid crushing, keep
hands out of the twine arm path. Turn off power BEFORE servicing or
adjusting twine arms or twine cutter mechanism.
Stay out of the path of twine arms at all times when power to twine arms is ON.
E39695-UN-31JAN96

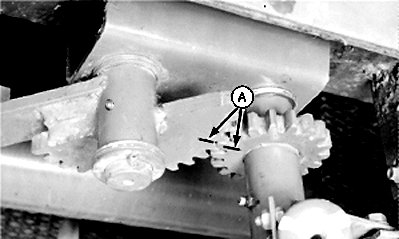

A - Timing Mark (2 used)
When replacing or servicing the twine arm or drive gear, make sure the timing marks (A) are lined up as shown.|
