Balance Roller Baffle

Do not remove plastic tie bands from pickup baffle roller. If tie bands are removed, crop could wrap around roller between rods and tube.

Replace missing tie bands as soon as possible.

1.

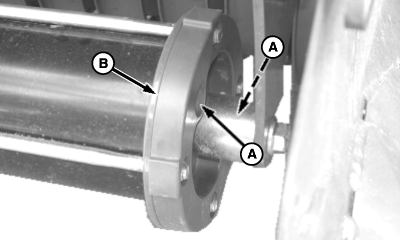

   E82681-UN-11APR17

   A - Self-Tapping Screw (2 used)

   B - Plastic Cover

   Remove self-tapping screws (A) and plastic cover (B).

---




2. Remove all crop and dirt buildup from between roller and rods, and at roller ends.

3.

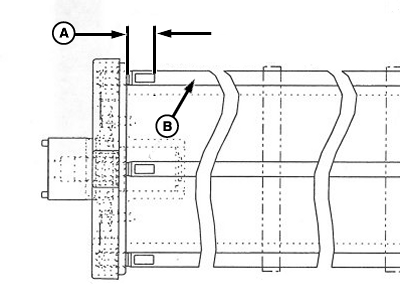

   E82682-UN-25APR17

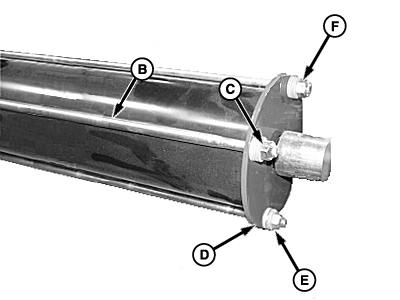

   E82683-UN-25APR17

   A - Distance

   B - Rod

   C - Nut

   D - Mark

   E - Nut

   F - Nut

   Measure the distance (A) from the inside of the wrench flat on rod (B) to the inside edge of the end cap.

---




4. Adjust nut (C) on the rod as necessary to adjust dimension within specification.

   Distance (A)	Distance	18—20 mm (0.70—0.78 in)

5. Repeat the preceding step for each rod.

6. Spin the roller to find the heavy point, or where bow in roller and gravity causes the roller to stop turning.

7. At the heavy point (directly below the roller axis), place a mark (D) beside closest nut. Tighten nut (E) 1/4 turn, then spin the roller again to check balance.

8. If the roller is still heavy on the same point, loosen the opposite nut (F) 1/4 turn and spin roller to check balance.

9. Repeat steps 6—8 until the roller spins evenly.

10. Install the plastic cover and retain with previously removed self-tapping screws.
