Belt Lacing and Pin Installation

When belts are assembled, edges must be aligned to prevent belt damage.

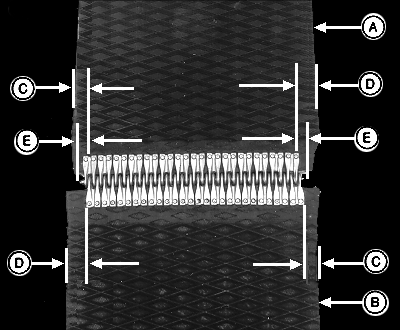

E82719
E82719-UN-27JUN17

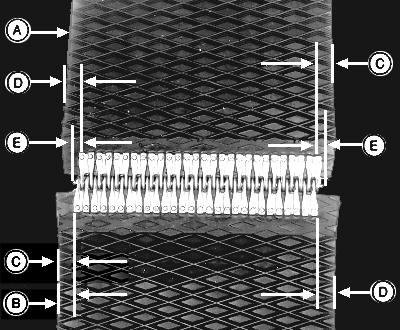

E82720
E82720-UN-27JUN17

A - Belt Edge

B - Belt Edge

C - Dimension, 11 mm (0.433 in)

D - Dimension, 14 mm (0.551 in)

E - Dimension, 3 mm (0.118 in)

The laces use the same number of segments on each end of belt, which requires the laces to be offset slightly.

Belt edges (A and B) must be aligned when laced and pinned correctly. Check alignment of the belt edges approximately 51 mm (2 in) back from the belt end. Dimensions (C—E) are shown for reference.
