Check for Looped Net Wrap Material

Net material looped above the counterknife angle after cut-off can get pinched between the front sheet and the rubber roll when the counterknife angle is raised.

Looping net material is caused from the brake not quickly stopping the roll of net material.

1.
   E82721-UN-02MAY17

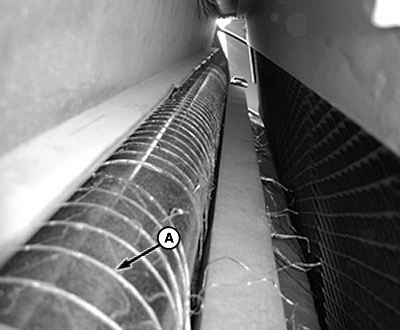

   Net Material Against Steel Roll


   E82722-UN-02MAY17

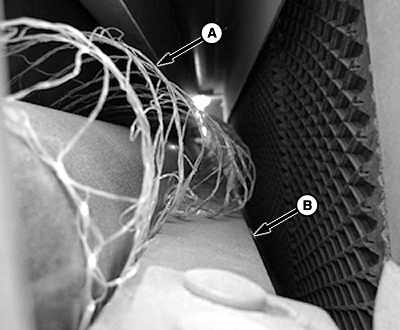

   Looped Net Material Above Counterknife Angle

   A - Net Material

   B - Counterknife Angle

   Make a bale and apply net wrap.

---




2. Shut off the tractor engine and remove ignition key.

3. Open the net wrap cover.

4. Perform a visual check from the right-hand side of the baler.

   • If net material (A) is against the steel roll as shown, the surface wrap is performing acceptably.
   • If net material is looped over the counterknife angle (B), brake torque can be too low. (See CHECK AND ADJUST NET WRAP FEED ROLL BRAKE in this section.
