Check and Straighten Net Pan Angle

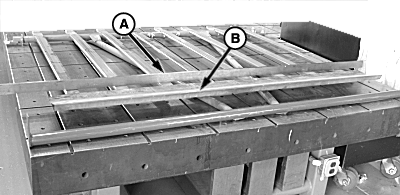

E55331-UN-09JUL07

A - Straight Edge

B - Net Pan Angle

1. Place the net pan on a solid, level surface.

2. Remove the leaf spring by removing cotter pins (one on each end of the leaf spring).

3. Place a straight edge (A) on the net pan angle (B) top (shown) or the channel beneath the net pan angle.

4. The net pan angle can be bowed up to 2.5 mm (0.10 in).

5.

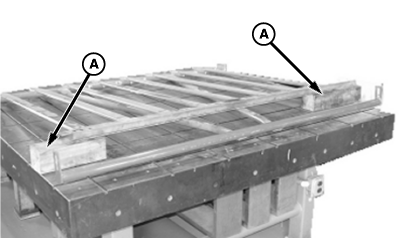

   E83031-UN-05MAY17

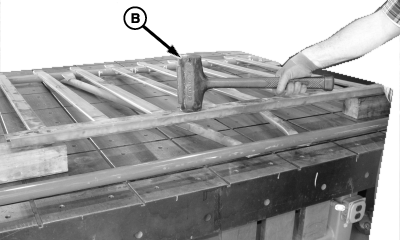

   E83032-UN-04MAY17

   A - Block (2 used)

   B - Hammer

   If bow is high in the middle, place blocks (A) under each end and push down, or use a dead blow hammer (B) in the middle of the net pan angle to straighten.

---




6. Adjust the net pan pressure. (See CHECK AND ADJUST NET PAN PRESSURE WITHOUT LEAF SPRING in this section.)
