Check and Adjust Net Wrap Switch

1.


   TS268-UN-23AUG88

   Knife is sharp and net wrap knife arm can move without warning. Keep hands clear of the knife arm.

   Turn the tractor ignition key to the ON position. Do not start tractor engine.

---




2. Turn the monitor-controller ON. Ensure that the monitor-controller is in the NET mode.

3. Open the net wrap cover.

4. Clean the area around the net wrap switch.

5.
   E83033-UN-24OCT17

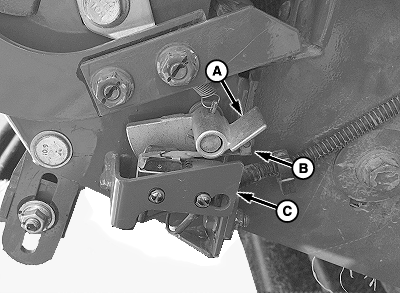

   Net Wrap Switch

   A - Lever

   B - Switch Actuator

   C - Bracket

   Verify that the switch actuator (B) and lever (A) do not contact bracket (C). Bend the bracket as necessary.

---




6. Verify that the knife arm is down.

7. Verify switch operation using the monitor display as follows:

   1. Go to channel 012 on the monitor. Tone must come on.

   2. Rotate lever (A) down against the switch actuator (B). Tone must go off.

   3. Release the lever. Tone must come on.

8. Turn the tractor ignition key OFF and remove key.

9.
   E83034-UN-24OCT17

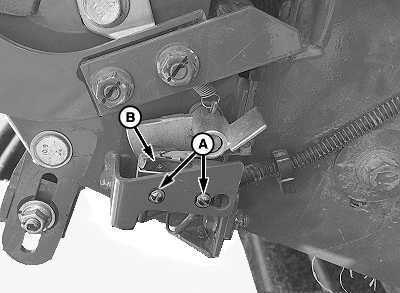

   A - Screw (2 used)

   B - Switch

   If the switch operation checkout does not provide the results described, adjust switch position as follows:

   1. Loosen screws (A) and reposition the switch (B) as necessary.

   2. Tighten screws finger tight, then tighten an additional 1/4—1/2 turn.

   3. Recheck switch operation using the monitor.

---




10. If switch adjustment does not produce the desired results:

    1. Check wire harness for cuts and breaks.

    2. Check wire connections on the switch.

    3. Disconnect one wire from the switch. Test switch operation using a multimeter. There must be continuity between the switch terminals when the switch actuator is in the up position. When the actuator is depressed, continuity must be broken. Replace switch as necessary.

11.
    E52493-UN-24JUN03

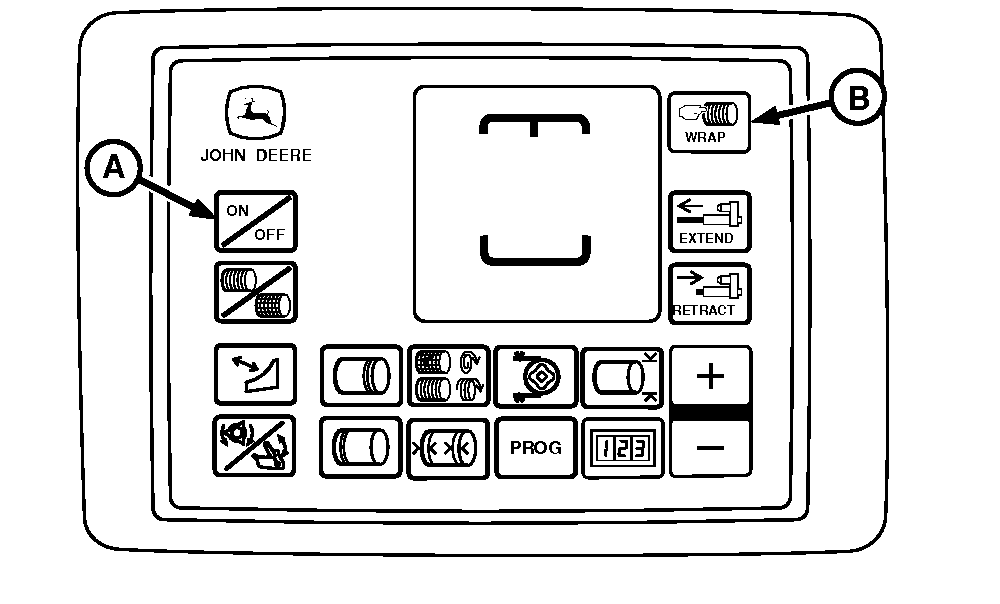

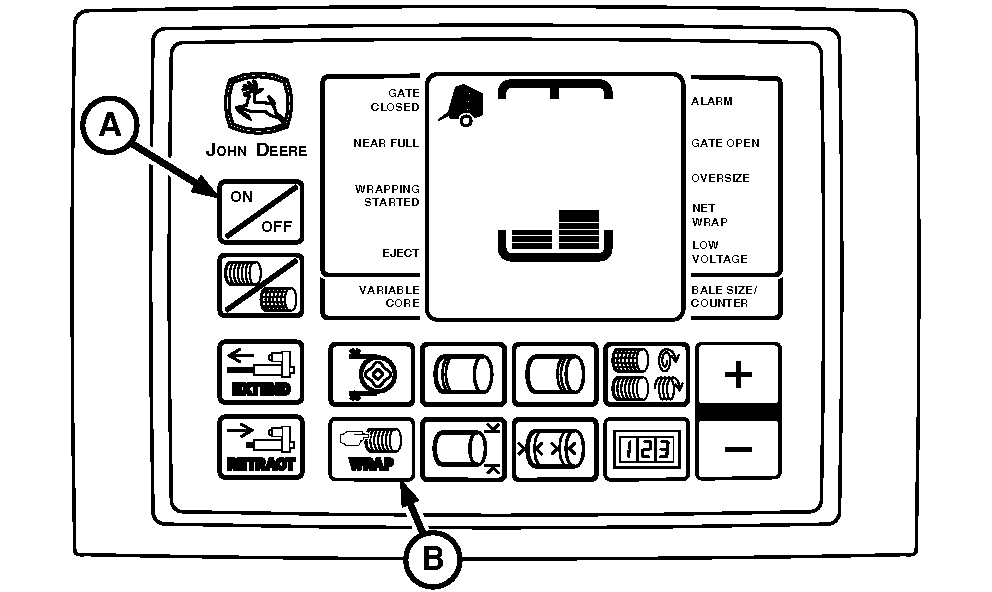

    BaleTrak™ Pro Monitor


    E84426-UN-06SEP17

    BaleTrak™ Plus Monitor

    A - ON- OFF Key

    B - WRAP Key

    Recheck switch operation using the monitor display.

---




12. Close the net wrap cover.

13. If this procedure is not followed, net feeds continuously during the next bale. The letter n appears in the monitor-controller display.

    Press the WRAP key (B) to cycle the net wrap actuator. The net wrap knife arm must be at the home (downward) position.

14. Press the ON-OFF key (A) to turn the monitor-controller OFF. Turn the tractor ignition key to the OFF position and remove the key.
