Check for Left-Hand Side Counterknife Contact

If the counterknife angle does not contact the knife on the left-hand side or the net wrap cut is poor on the left-hand side, check for interference between the idler sheave bolt head and the net pan bolt head or the net pan strap.

1.
   E83128-UN-11MAY17

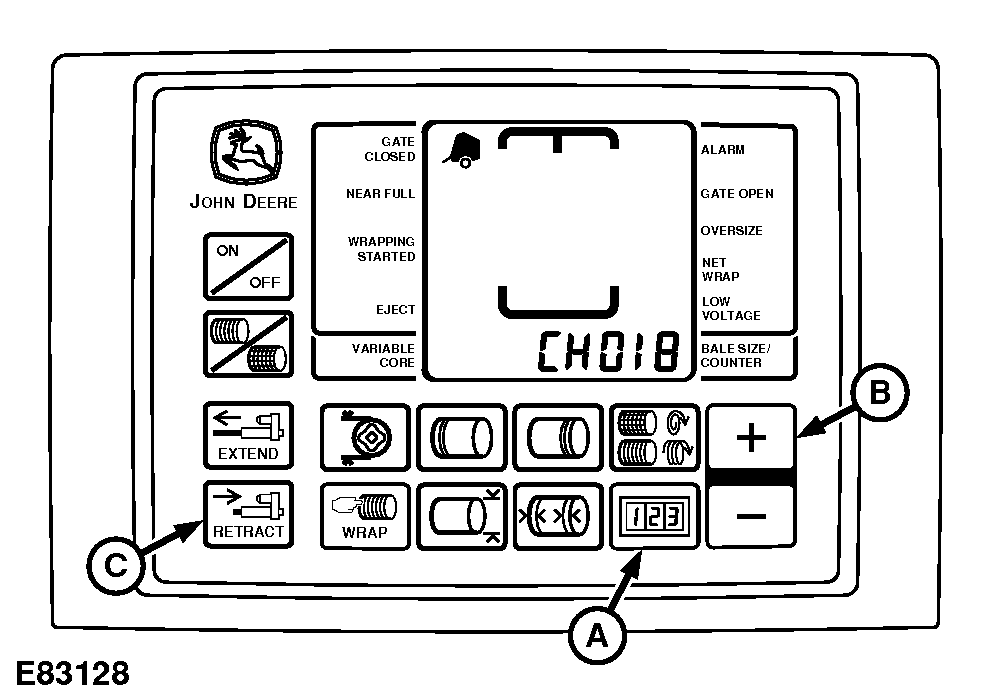

   BaleTrak™ Pro Monitor


   E84424-UN-06SEP17

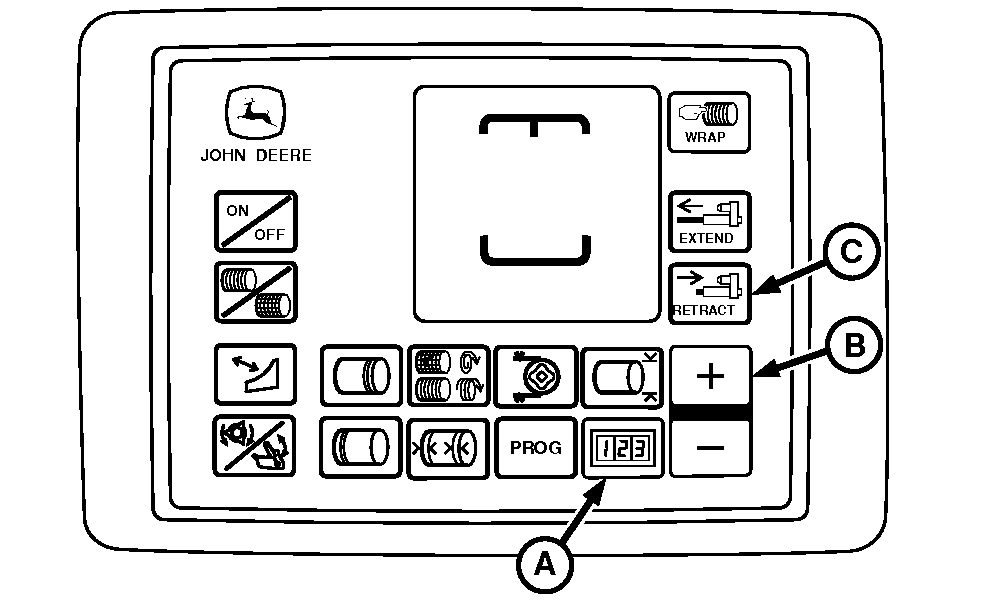

   BaleTrak™ Plus Monitor

   A - COUNTER Key

   B - PLUS Key

   C - RETRACT Key

   Open the net wrap cover.

---




2. Engage the net wrap brake.

3. Turn the tractor ignition key to the ON position. Turn the monitor-controller ON.

4. Ensure that monitor is in NET mode. Turn monitor OFF.

5. Press and hold the COUNTER key (A) while turning the monitor-controller ON. CH001 appears on the display.

6. Continue to hold the COUNTER key and press the PLUS key (B) to advance to CH018. Release the COUNTER key.

7. Press and hold the RETRACT key (C) to move the counterknife angle to the down position.

8. To avoid personal injury from unexpected knife movement, disconnect the net wrap actuator wire connector or power plug when performing adjustment or working in the area.


   E82724-UN-02MAY17

   A - Connector

   Turn the monitor-controller OFF. Turn the tractor ignition key to the OFF position and remove the key. Disconnect the monitor-controller power plug from the power source or disconnect the net actuator wire harness connector (A).

---




9.
   E58064-UN-09OCT09

   A - Idler Sheave Bolt

   B - Net Pan Bolt

   C - Net Pan Strap

   D - Idler Sheave

   E - Arm

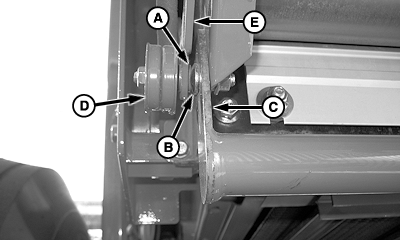

   Check for contact between the idler sheave bolt head (A) and the net pan bolt head (B) or the net pan strap (C). If there is contact:
   • Grind the net pan bolt head or grind a chamfer at the front edge of the net pan strap.
   • Bend arm (E) out and remove the washer between the idler sheave (D) and the arm if necessary to align the idler sheave with the v-belt.



---
