Correct Net Wrap Wrapping on Rubber Drive Roll

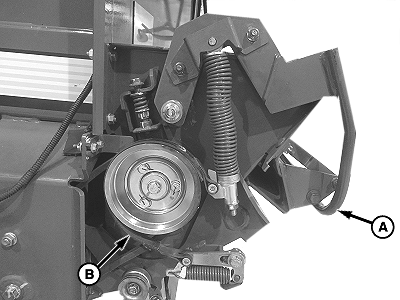

E82219-UN-22FEB17

A - Lever

B - Brake Band

1. Disengage the tractor PTO, shut off the tractor engine, and disconnect the monitor-controller power plug from the tractor convenience outlet.

2. Open the net wrap cover.

3. Pull the brake lever (A) out and up to rest on top of the latch tab to disengage the brake band (B).

4. Do not cut net wrap material from the rubber feed roll. Any knife cuts in the rubber roll covering can result in more frequent wrapping around the rolls and can require roller replacement.

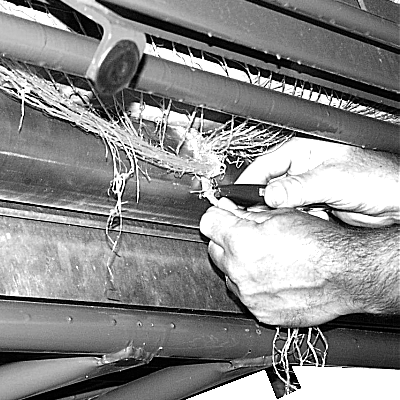

   E83035-UN-12MAY17

   Pull the net wrap material away from the supply roll and the steel roll. Cut the net wrap material. Remove and discard all of the wrapped material, including all strings and staples.

---




5. Wipe off the rubber drive roll and check for any sticky material. If necessary, the roll can be washed with soap and water. NEVER use solvents to clean the rubber roll. Allow rolls to dry before threading or wrapping of the net on the rubber roll can occur again.

6. Thread net wrap material. (See LOAD NET WRAP MATERIAL in Preparing Baler for Net Wrap section.)

7. If static electricity or dampness causes net wrap material to cling to the rolls, dust the rubber drive roller with granular oil absorbent.

8.
   E82219-UN-22FEB17

   A - Lever

   B - Brake Band

   Pull lever (A) out and down towards the front of the machine to engage the brake band (B).

---




9. Close the net wrap cover.

10. Plug the monitor-controller power plug back into the tractor convenience outlet.
