Release Net Wrap Feed Roll Brake

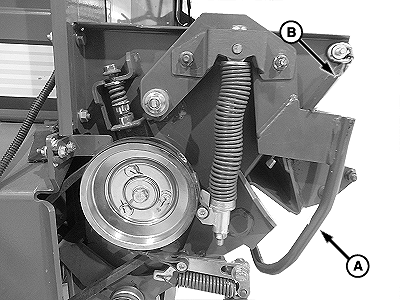

E82332
E82332-UN-01MAR17

A - Brake Lever

B - Latch

The manual brake release disengages the net feed rolls. Release the brake when threading net wrap or servicing the net wrap unit.

  1. Disengage the tractor PTO, shut off the tractor engine, and disconnect the monitor-controller power plug from the tractor convenience outlet.

  2. Open the net wrap cover.

  3. To disengage the feed roll brake, pull brake lever (A) out and up to rest on latch (B).

  4. To engage the net wrap brake, return lever (A) to the engaged position.

  5. Close the net wrap cover.

  6. Reconnect the monitor-controller power plug to the tractor convenience outlet.

DP99999,0000D51-19-20170913
