Adjust Pickup Height (MegaWide™ Plus Pickup Only)

Operating with pickup teeth contacting the ground can cause pickup damage.

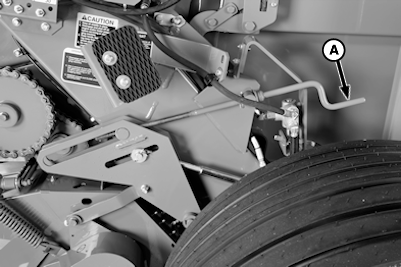

E66457-UN-09JUL12

A - Pickup Height Bell Crank

Adjust pickup tooth height to obtain a ground clearance of 25—50 mm (1—2 in) for an initial setting. The final setting depends on field conditions.

To adjust pickup height:

• Turn bell crank (A) clockwise to raise the pickup
• Turn bell crank (A) counterclockwise to lower the pickup

If the baler is equipped with a hydraulic pickup lift, the bell crank acts as the downstop to control pickup operating height. This feature allows the pickup to return to the same operating height after raising and lowering hydraulically.

Always raise the pickup to the transport position when crossing ditches and moving from field to field.
