Connect PTO Driveline

1.


   TS198-UN-23AUG88

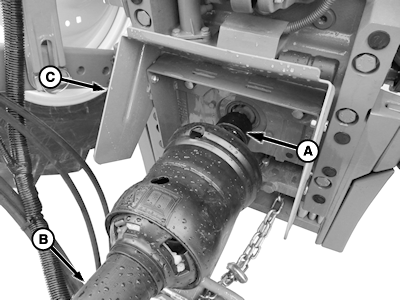

   E62263-UN-30MAR12

   A - Collar

   B - Shield

   C - PTO Shield

   Shut off tractor engine before attaching PTO driveline. Entanglement in the rotating driveline can cause serious injury or death.

   Keep driveline and power shaft splines clean of paint, dirt, and chaff. Apply John Deere Moly High Temperature EP Grease or John Deere EP Moly Grease on the tractor PTO shaft before connecting PTO driveline.

   Shut off the tractor engine and remove ignition key.

---




2. Raise the tractor PTO shield (C), if equipped.

3. Pull back on collar (A). The collar clicks and holds in the ready position.

4. Align the splines by rotating the baler driveline. Push the driveline onto the tractor PTO shaft until collar (A) snaps forward.

5. To check if the driveline is latched, pull back on shield (B). Do not pull on collar (A). Pulling on the collar releases the latch. Lower the PTO shield.
