Detach Baler from Tractor

1. To prevent personal injury caused by unexpected movement:

   • Park the tractor and baler on a level surface
   • Engage tractor parking brake and place transmission in Park
   • Disengage PTO
   • Shut off tractor engine and remove ignition key

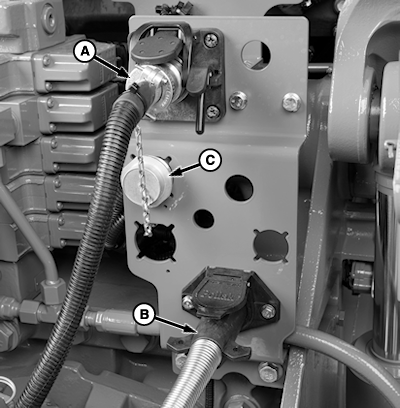

   E67578-UN-30AUG12

   A - ISO Harness

   B - Tail and Warning Light Plug

   C - Cap

   Park baler on a level surface, or block both baler wheels so baler cannot roll after detaching from the tractor.

---




2. Engage tractor parking brake and place transmission in Park.

3. Shut off tractor engine and remove ignition key.

4. Disconnect ISO harness (A) and the tail and warning light plug (B).

5. Install cap (C) on the ISO harness.

6. Store the wiring harnesses in the baler tongue.

7.


   X9811-UN-23AUG88

   Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines. Tighten all connections before applying pressure. Search for leaks with a piece of cardboard. Protect hands and body from high-pressure fluids.

   If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene can result. Doctors unfamiliar with this type of injury must reference a knowledgeable medical source. Such information is available from Deere & Company Medical Department in Moline, Illinois, U.S.A.

   On tractors equipped with an SCV lever lockout, push the lockout into the transport lock position before detaching the baler to prevent component movement and personal injury.

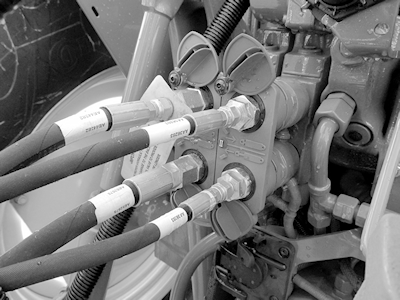

   E62266-UN-30MAR12

   Disconnect hydraulic hose couplers from the tractor receptacles. Install dust covers on the couplers. Place the hose couplers and wire harness connectors in the slots in the baler PTO shield to keep them clean and prevent damage. Store the hoses in the baler tongue.

---




8.

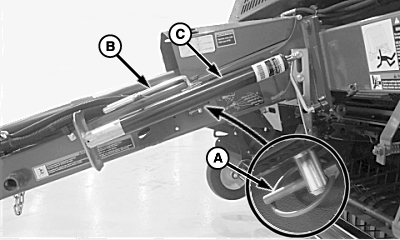

   E83342-UN-05JUN17

   Jackstand (Storage Position)

   A - Quick-Lock Pin

   B - PTO Support Rod

   C - Jackstand

   Remove quick-lock pin (A) and PTO support rod (B) retaining jackstand (C) in storage location. Remove the jackstand.

---




9.

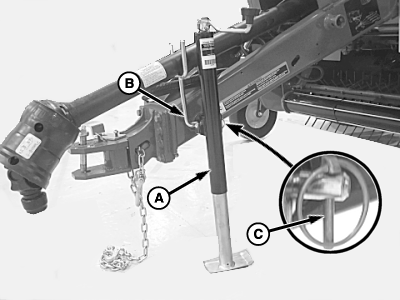

   E83343-UN-02JUN17

   Jackstand (Tongue Support Position)

   A - Jackstand

   B - PTO Support Rod

   C - Quick-Lock Pin

   Install the jackstand (A) on the tongue support post. Insert the PTO support rod (B) through the jackstand and post with the support facing the front of the tongue. Install quick-lock pin (C).

---




10. Turn the handle clockwise to take the tongue load off the tractor drawbar. After disconnecting PTO from tractor, place driveline in the PTO support rod.

11.


    TS198-UN-23AUG88

    Shut off tractor engine before detaching PTO driveline. Entanglement in a rotating driveline can cause serious injury or death.

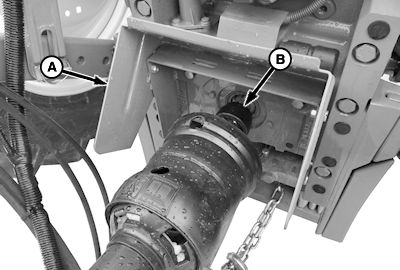

    E83671-UN-26JUN17

    A - PTO Shield

    B - Collar

    Raise tractor PTO shield (A), if equipped.

---




12. Support the driveline and pull back on collar (B). Slide the driveline off the tractor shaft. Place the driveline in the PTO support on the jackstand.

13. Lower the tractor PTO shield.

14. Disconnect the safety chain from the tractor.

15. Remove the hitch pin.

16. Carefully drive the tractor away from baler.
