Install Drawbar Shield

1. Drawbar shield is required to keep crop flowing underneath tractor and baler hitch area.

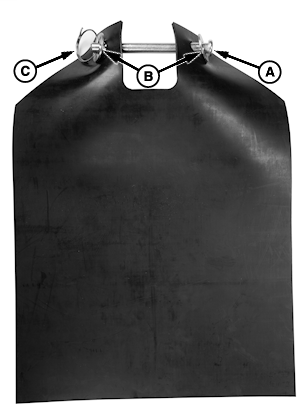

   E65201-UN-21MAY12

   A - Pin

   B - Washers

   C - Retaining Ring

   Install pin (A), washers (B), and retaining ring (C).

---




2. Slide drawbar shield onto drawbar.

3. Drawbar shield can be installed with baler attached to tractor drawbar by removing pin (A) and reassembling in front of the hitch.
