Connect Tail and Warning Light Harness
If towing tractor is not equipped with an electrical outlet, field installation of Seven-Terminal Auxiliary Electric Kit is required. Kit can be ordered through your John Deere dealer.
Make sure that baler tail and warning lights operate with tractor tail and warning lights and turn signals.
E62265-UN-30MAR12

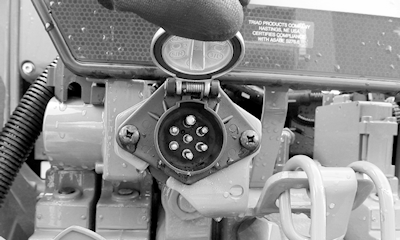

Tractor Seven-Terminal Outlet
E84488-UN-12SEP17
Baler Tail and Warning Light Plug
A - Tail and Warning Light Plug
Connect tail and warning light harness plug (A) to the seven-terminal outlet on the tractor. Check tail light and warning light function. (See Light Enhancement Module Operation in Transporting section.)
|
Terminal |
Circuit |
Function |
Wire Color |
|---|---|---|---|
|
1 |
0100 |
Ground |
Black |
|
2 |
Open |
||
|
3 |
0104 |
Left-Hand Turn or Warning Light |
Yellow |
|
4 |
Open |
||
|
5 |
0105 |
Right-Hand Turn or Warning Light |
Green |
|
6 |
0101 |
Tail Lights |
Brown |
|
7 |
Open |
|
DP99999,0000D6E-19-20171010 |
