Lock the Gate
TS698-UN-21SEP89
E83772-UN-11JUL17

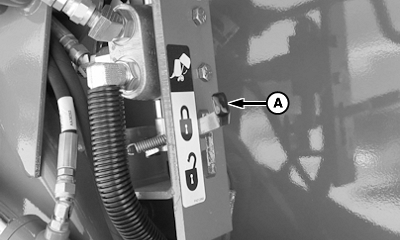

A - Gate Lock Lever
While working inside or around the baler with an open gate, the gate lock lever (A) must be moved to the locked position. Use this safety feature any time the gate is open. Close the gate any time the baler must be left unattended.The gate lock valve locks each gate lift cylinder independently with the gate in any position. If the hydraulic lift system fails on one side of the machine, the gate is still held open by the lift cylinder on the other side.
- Lever up—Gate is locked
- Lever down—Gate is unlocked
|
