Open and Close Net Wrap Cover

  1. Be sure that PTO is disengaged, tractor engine is off, and monitor-controller power plug is disconnected from the tractor convenience outlet before opening cover.

    Cover is spring loaded and moves up quickly when released.

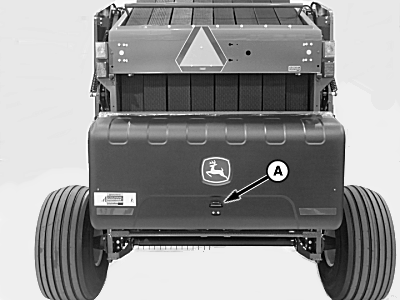

    E83351
    E83351-UN-06JUN17

    A - Latch Handle

    To open the net wrap cover, pull on latch handle (A) and lift the cover up.


  2. To close, pull the cover down and push it shut.

DP99999,0000D73-19-20170629
