Store Hydraulic Hoses and Wire Harness
 Escaping fluid under pressure can penetrate the skin
causing serious injury. Avoid the hazard by relieving pressure before
disconnecting hydraulic or other lines.
E83355-UN-07JUN17

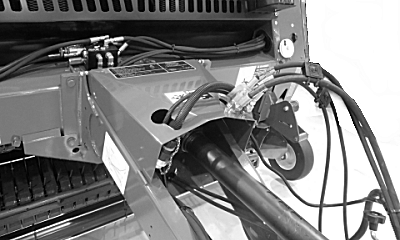

Install protective caps on all hydraulic hose couplers. Place
the hose couplers and wire harness connectors in the slots in the
baler PTO shield to keep them clean by avoiding contact with the ground.
Fold the hoses and wire harnesses and place them in the baler tongue.
|
|
DP99999,0000D74-19-20171107
|
|
