Adjust Pickup Height (MegaWide™ HC2 Feed System)

1. Using the selective control valve (SCV) lever, fully lower the pickup. Shut off the tractor engine and remove the ignition key.

2.
   E83510-UN-21JUL17

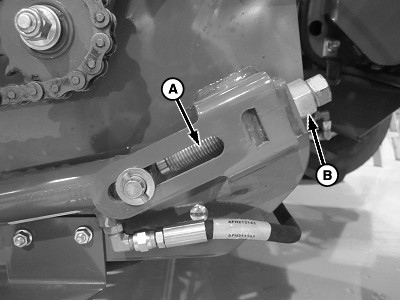

   Left-Hand Side Shown


   E83511-UN-21JUL17

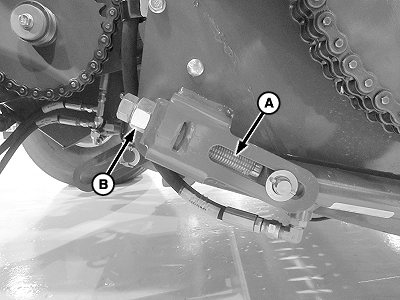

   Right-Hand Side Shown

   A - Jack Bolt

   B - Lock Nut

   Adjust the pickup height by turning the jack bolt (A) clockwise to raise the pickup or counterclockwise to lower the pickup.

---




3. Left-hand and right-hand adjustments must be equal to avoid pickup frame damage.

   Secure the jack bolt by tightening the lock nut (B) against the frame.
