Every 100 Hours

Gear Case (MegaWide™ Plus Pickup)

1.

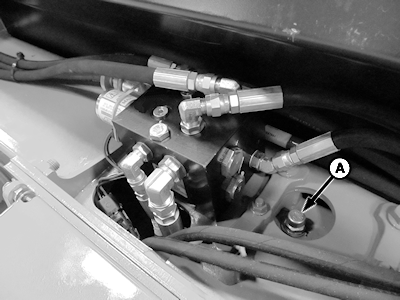

   E61068-UN-16MAR12

   Gear Case Dipstick (MegaWide™ Plus Pickup)

   A - Dipstick

   Check lubricant level with dipstick (A). Lubricant must fall between the grooves on the dipstick.

---




2. Do not overfill the gear case. Overfilling results in overheating and oil leakage.

   Refill as necessary using SAE 85-140 API GL-5 gear lubricant. Drain and refill the gear case once each season.

   Gear Case	Capacity	1.2 L (1.25 qt)

3. Install the dipstick and tighten to specification.

   Dipstick	Torque	29 N·m (21 lb·ft)

Gear Case (MegaWide™ HC2 Pickup)

1.

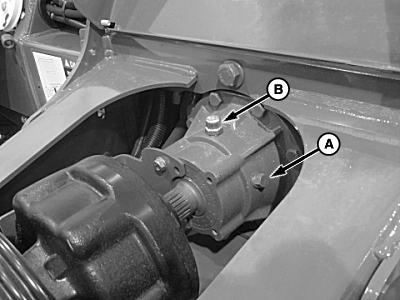

   E83428-UN-12JUN17

   Gear Case (MegaWide™ HC2 Pickup)

   A - Check Plug

   B - Fill Plug

   Remove the check plug (A) and check the lubricant level.

---




2. Do not overfill the gear case. Overfilling results in overheating and oil leakage.

   If necessary, remove the fill plug (B) and add SAE 85-140 API GL-5 gear lubricant until oil level reaches the check plug port.

3. Install and tighten the check plug.

4. Install and tighten the fill plug.
