Check and Adjust Lower Belt Guides (MegaWide™ Plus Pickup)

1.

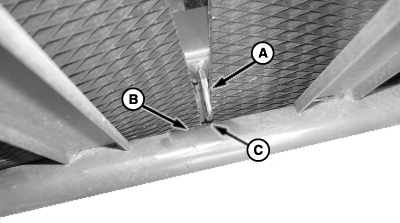

   E55312-UN-28JUN07

   A - Strap

   B - Crossbar

   C - Clearance

   Check that belts are not pinched between the lower belt guide straps (A) and crossbar (B). Tighten nuts on both sides of crossbar.

---




2. If clearance (C) is too close, slitting of net material can occur.

   To reduce net material slits while baling milo, sorghum, or cornstalks, adjust the clearance to 4—5 mm (0.16—0.20 in).

   To check the clearance between the straps and the crossbar, use a 3 mm (0.12 in) and a 5 mm (0.20 in) drill bit as gauges.

   Check the clearance (C) between the end of all belt guide straps and the bottom crossbar. Clearance must be within specifications.

   Belt Guide to Bottom Crossbar	Clearance	3—5 mm (0.12—0.20 in)

3.

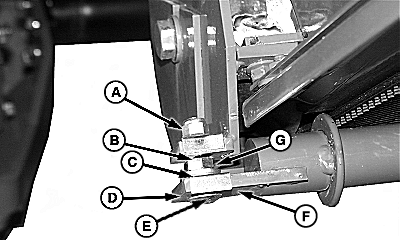

   E49028-UN-18OCT00

   A - Lock Nut, M10

   B - Nut, M10

   C - Shims

   D - Shims—Storage Position

   E - Carriage Bolt, M10 x 50

   F - Crossbar Mounting Bracket

   G - Washer, 10.50 x 18 x 1.60 mm

   If clearance is not within specification, adjust as follows:

   1. Prevent damage to the baler. If not supported, the net wrap guide swings back when the lock nuts are removed. DO NOT let the guide swing back freely.

      Remove lock nuts (A).

   2. Swing the net wrap guide away from the gate roll.

   3. Remove nuts (B) while keeping carriage bolts (E) in place.

   4. Add or remove washer (G) and shims (C) on each side as needed.

   5. Install nuts (B) on carriage bolts (E) and tighten.

   6. Swing the guide assembly forward and align the bolts with the holes in the frame. Install lock nuts and tighten.

   7. Recheck clearance on both sides and repeat adjustment as necessary.

---




4. Always check clearance between all belt guide straps and bottom crossbar before checking clearance between guide washer and lower net wrap guide.

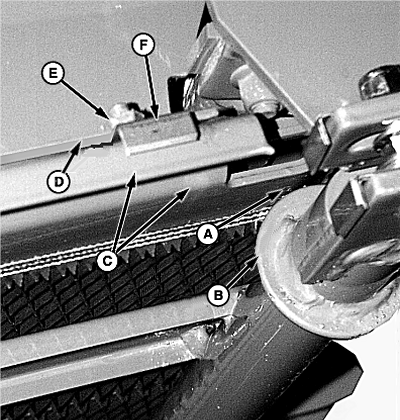

   E85456-UN-03NOV17

   A - Clearance

   B - Belt Guide Washer

   C - Lower Net Wrap Guide

   D - Deflector

   E - Nut

   F - Shims

   If 0.5—2.5 mm (0.020—0.100 in) clearance (A) is exceeded, the outside belts can pass between the belt guide washer (B) and the guide (C) and damage belts.

   Check clearance (A) between guide washer (B) and lower net wrap guide (C). Clearance must be within specifications.

   Belt Guide Washer to Lower Net Wrap Guide	Clearance	0.5—2.5 mm (0.020—0.100 in)

---




5. If clearance is not within specifications, loosen nut (E) and add or remove shims (F) between the net wrap guide (C) and deflector (D), as necessary. Tighten nut (E).

6. Recheck the clearance (A) between the belt guide washer and the lower net wrap guide on both sides and adjust if necessary.

7. Adjust belt tracking. (See Adjust Belt Tracking in Service-Baler section.)
