Check and Adjust Lower Belt Guides (MegaWide™ HC2 Feed System)

1.
   E85456-UN-03NOV17

   A - Clearance

   B - Belt Guide Washer

   C - Lower Net Wrap Guide

   D - Deflector

   E - Nut

   F - Shims

   Check clearance (A) between guide washer (B) and lower the net wrap guide (C). Clearance must be within specifications.

   Belt Guide Washer to Lower Net Wrap Guide	Clearance	0.5—2.5 mm (0.020—0.100 in)

---




2. If 0.5—2.5 mm (0.020—0.100 in) clearance (A) is exceeded, the outside belts can pass between the belt guide washer (B) and guide (C) and damage belts.

   If clearance is not within specifications, loosen nut (E) and add or remove shims (F) between the net wrap guide (C) and deflector (D), as necessary. Tighten nut (E).

3.

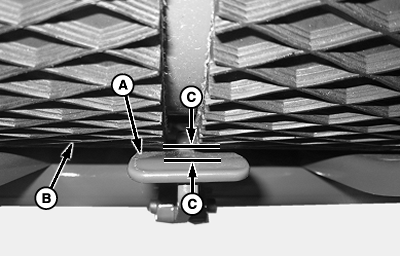

   E83603-UN-19JUN17

   A - Strap

   B - Belt

   C - Clearance

   Check that belts (B) are not pinched between the lower belt guide straps (A) and roll or spirals on the roll. Belt guides must be spaced evenly across the net pan crossbar.

---




4. Check the clearance (C) between the flat part of the belt guide strap and the belt. Measure from the outer surface of the belt to the flat surface of the belt guide. Measurement must be taken when the spiral on the gate roll is aligned to the belt guide flat. Clearance must be within specifications.

   Belt Surface to Belt Guide Flat	Clearance	1—2 mm (0.039—0.078 in)

5. If the clearance is not within specifications, adjust as follows:

   1. Loosen the lock nut.

   2. Rotate the belt guide to obtain the required clearance.

   3. Tighten the nut.

   4. Recheck the clearance with the spiral aligned with the flat of the belt guide.
