Wheel Spindle Positions—460M and 560M Balers with MegaWide™ HC2 Pickup and 21.5L x 16.1 Tires

No raised baler position is available with this spindle.

E82755-UN-18JUL17

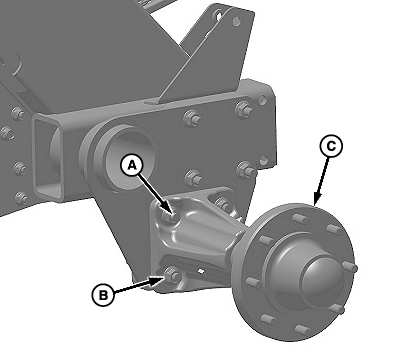

Wheel Spindle Mounting

A - Cap Screw, M16 x 180 (4 used)

B - Flange Nut, M16 (4 used)

C - Spindle

When the baler hitch is properly adjusted, the pickup teeth do not touch the ground when the pickup is lowered. The baler hitch must be set according to the tractor drawbar height. (See Adjust Baler Hitch in this section.)

Install cap screws with heads facing the inside of the frame and nuts on the outside of the wheel spindle.

If wheel spindles are replaced:

1. Install cap screws (A), flange nuts (B), and spindle (C).

2. Tighten flange nuts to specification.

   Flange Nuts	Torque	350 N·m (255 lb·ft)

3. Repeat on the opposite side.
