Wrap Material Storage

1.

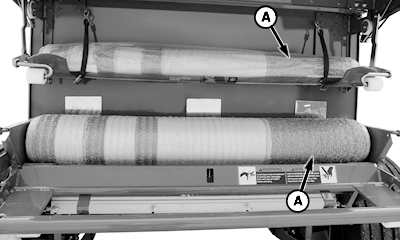

   E67178-UN-03AUG12

   A - Wide Green Stripe

   Load the roll with the wide green stripe (A) for the net wrap material or the striped end of the roll for B-Wrap material on the right-hand side. If the roll is oriented properly in the storage location, then it is ready to be lowered into the operating position.

---




2.

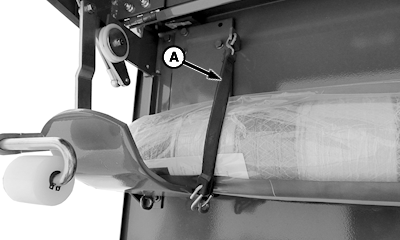

   E67179-UN-06AUG12

   A - Rubber Strap (as needed)

   To secure the roll, stretch rubber straps (A) and hook them to the support brackets on the right and left-hand sides.

---




3.

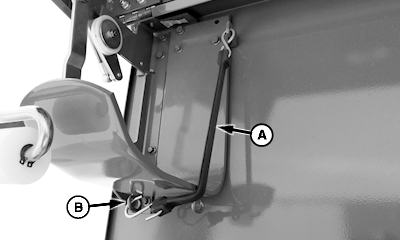

   E67180-UN-03AUG12

   A - Rubber Strap (as needed)

   B - Support Bracket (1 each side)

   When the storage location is empty, make sure that the rubber straps (A) are secured to the support brackets (B) and not left to hang free.

---




4.

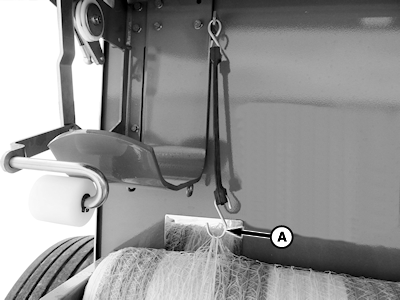

   E67181-UN-03AUG12

   A - S-hook (Hanging Free)

   If a rubber strap is allowed to hang free, the S-hook (A) can snag the net and ruin several hundred feet of material on the working roll.

---
