Annually

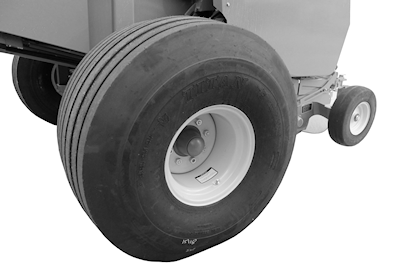

Baler Wheel Bearings and Gathering Wheel Bearings (If Equipped)

E62049-UN-30MAR12

Remove the wheels; then clean, repack, and adjust bearings. Use John Deere EP Moly or an equivalent SAE multipurpose type grease, or wheel bearing grease.

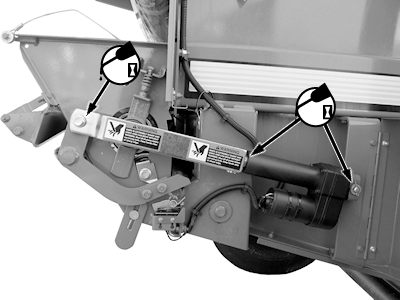

Net Wrap Actuator (If Equipped)

E61071-UN-16MAR12

Right-Hand Side

Lubricate rod end and base end actuator and link mounting pins with SAE 30 or heavier oil.

Gear Case (MegaWide™ Plus Pickup

1.
   E83425-UN-08JUN17

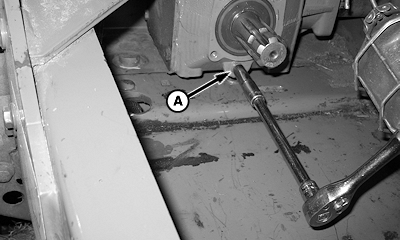

   Gear Case Drain Plug (MegaWide™ Plus Pickup)


   E83427-UN-08JUN17

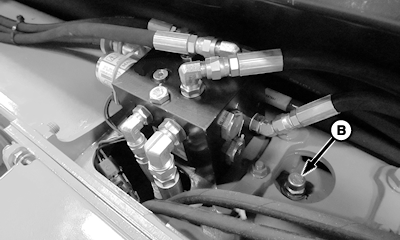

   Gear Case Dipstick (MegaWide™ Plus Pickup)

   A - Drain Plug

   B - Dipstick

   Driveline removed for illustration purposes

   Remove the drain plug (A) and drain oil into a suitable container. Dispose of oil properly.

---




2. Install the drain plug.

3. Do not overfill the gear case. Overfilling results in overheating and oil leakage.

   Remove the dipstick (B) and refill the gear case using SAE 85-140 API GL-5 gear lubricant.

   Gear Case	Capacity	1.2 L (1.25 qt)

4. Install the dipstick and check the lubricant level. Lubricant must fall between the grooves on the dipstick.

5. When the lubricant is at the proper level, tighten the dipstick to specification.

   Dipstick	Torque	29 N·m (21 lb·ft)

Gear Case (MegaWide™ HC2 Pickup)

1.
   E83426-UN-08JUN17

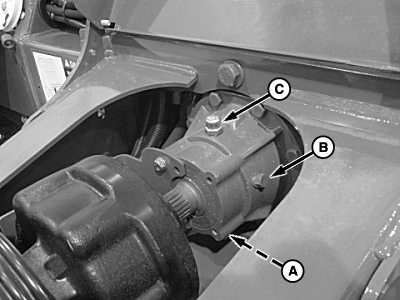

   Gear Case (MegaWide™ HC2 Pickup)

   A - Drain Plug

   B - Check Plug

   C - Fill Plug

   Remove the drain plug (A), check plug (B), and fill plug (C). Drain the oil from the gear case.

---




2. Install the drain plug and clean up any spilled oil.

3. Do not overfill the gear case. Overfilling results in overheating and oil leakage.

   Refill the gear case using SAE 85-140 API GL-5 gear lubricant until oil reaches the check plug port.

   Gear Case	Capacity	1.2 L (1.25 qt)

4. Install and tighten the check plug.

5. Install and tighten the fill plug.

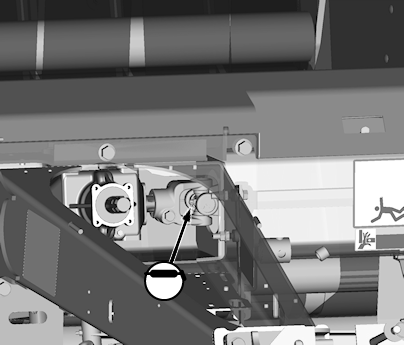

Gear Case Output Shaft U-Joint (MegaWide™ Plus Pickup)

E62434-UN-10APR12

Driveline and shields removed for illustration purposes.

Grease lubrication fitting annually or every 250 hours.

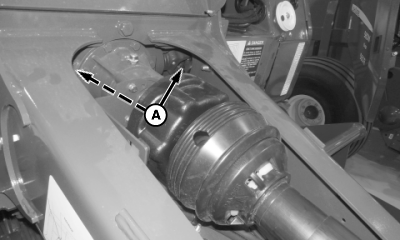

Gear Case Output Shaft U-Joints (MegaWide™ HC2 Pickup)

E83429-UN-12JUN17

MegaWide™ HC2 Gear Case

Grease lubrication fittings (A) annually or every 250 hours.

Third Roll Drive Clutch

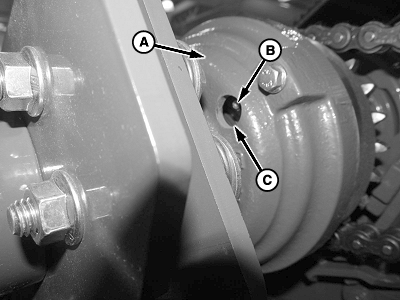

E84109-UN-18AUG17

Third Roll Drive Clutch

A - Clutch Hub

B - Lubrication Fitting

C - Hole (3 used)

1. Rotate the output shaft on the left-hand side of the baler to align one of the holes (C) in the clutch hub (A) with the lubrication fitting (B).

2. Apply 5—10 pumps of grease.
