Convert Twine Ball Storage

Eight Twine Ball to Ten Twine Ball Storage

Maximum twine ball height with the ten ball option is 210 mm (8.25 in).

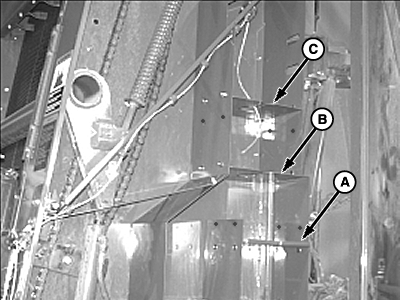

E83757-UN-07JUL17

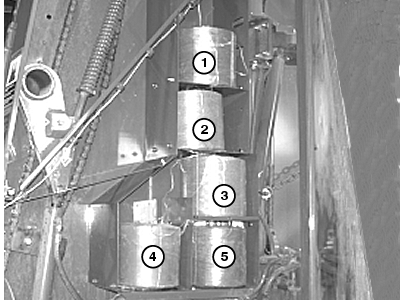

E83758-UN-07JUL17

A - Lower Shelf

B - Top Shelf

C - Additional Shelf

1. Cut the twine end, leaving twine threaded through the guides.

2. Remove the twine balls from the shelves.

3. Move the lower shelf (A) down to the position shown, with the mounting sides pointing down.

4. Move the top shelf (B) down to the center position shown, with the mounting sides pointing up.

5. Install an additional shelf (C) in the top position shown using four M8 x 16 round-head bolts and nuts. Install the shelf with the mounting sides pointing up.

6. Join the twine balls in sequence (1—5) as shown.

7. Repeat the procedure on the opposite side.

Ten Twine Ball to Eight Twine Ball Storage

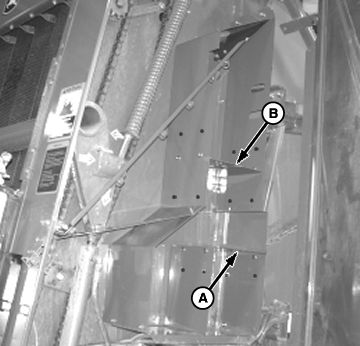

E54712-UN-27JUN06

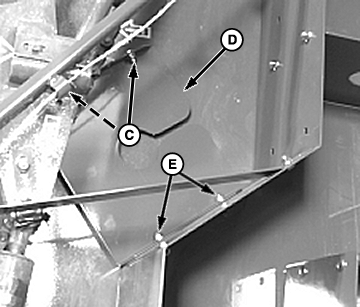

E54713-UN-29MAY07

A - Lower Shelf

B - Top Shelf

C - Round-Head Bolts and Nuts
(2 used)

D - Shelf Storage Position

E - Round-Head Bolts and Nuts
(2 used)

1. Cut the twine, leaving twine threaded through guides.

2. Move the lower shelf (A) up to the position shown, with the mounting sides pointing down.

3. Move the top shelf (B) down to the position shown, with the mounting sides pointing up.

4. Remove the center shelf. Place in one mounting side Install shelf in storage position (D) and fasten shelf in place with round-head bolts and nuts (C and E).

5. Repeat the procedure on the opposite side.
