Twine Terms and Settings

E84121-UN-28AUG17

E84512-UN-08SEP17

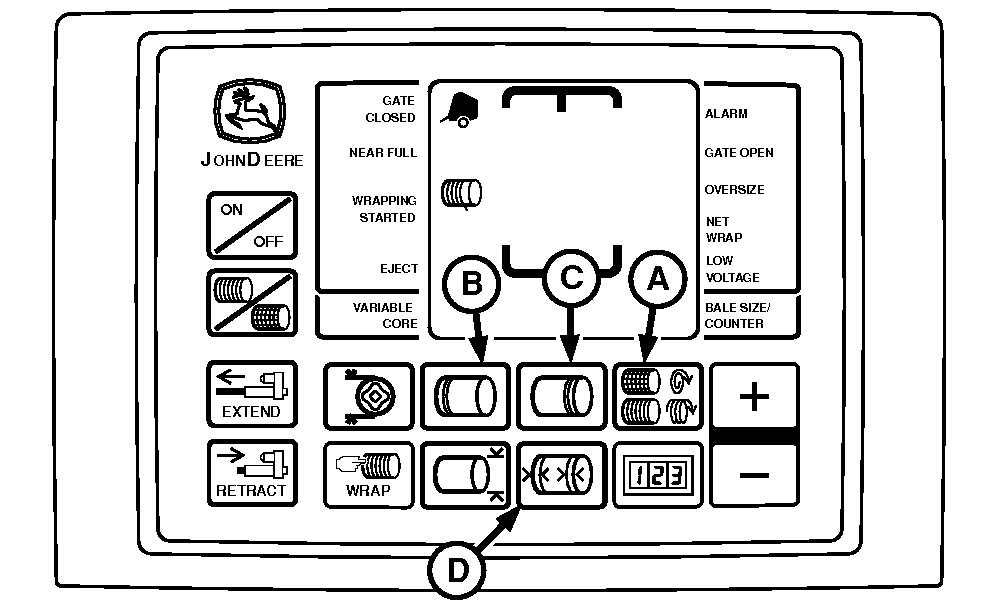

BaleTrak™ Pro Monitor

E84122-UN-28AUG17

BaleTrak™ Plus Monitor

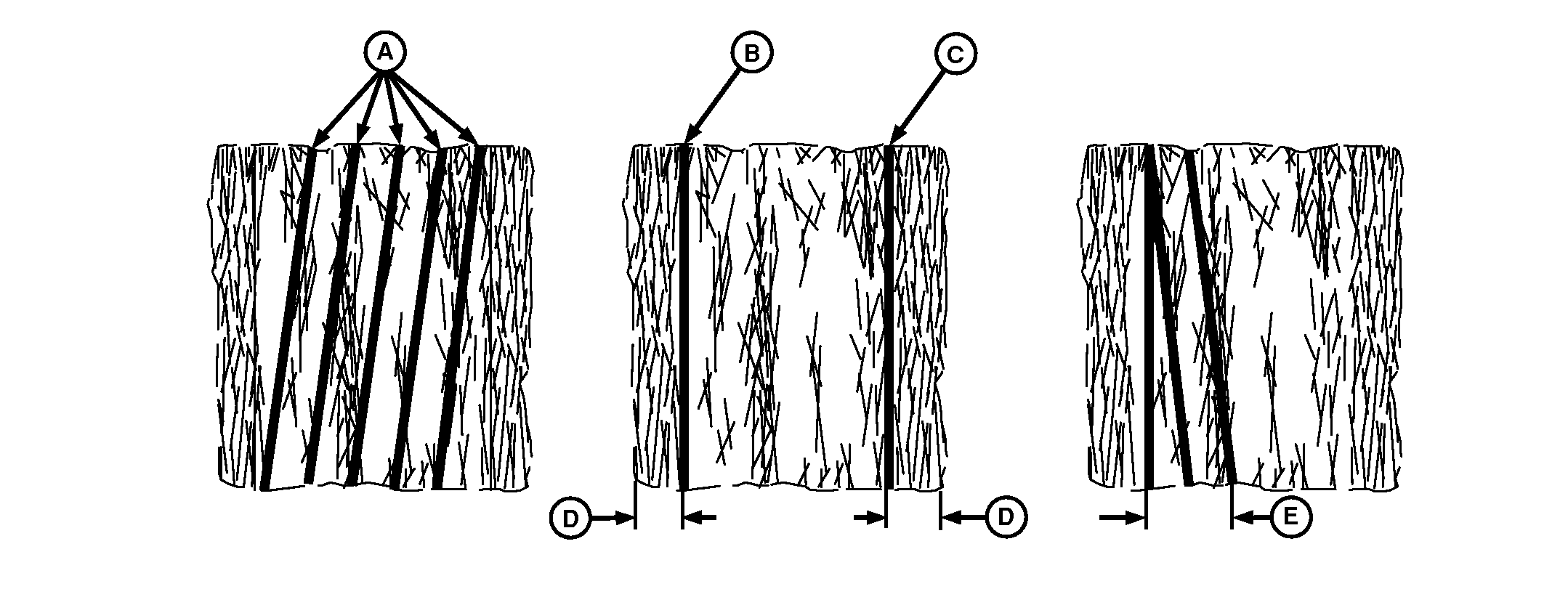

A - Twine Spacing

B - Number of Left-Hand End Wraps

C - Number of Right-Hand End Wraps

D - Left-Hand and Right-Hand End Wrap Distance

E - Re-Extension or Cinch Wrap Distance

There are eight factors involved in properly placing twine on the bale. The factors are:

• Twine Spacing
• Number of Left-Hand End Wraps
• Number of Right-Hand End Wraps
• Left-Hand End Wrap Distance
• Right-Hand End Wrap Distance
• Re-Extension Wrap Distance
• Cinch Wrap
• Dry Straw

The monitor-controller is programmed to apply approximate twine spacing in the center of the bale. Twine spacing decreases toward the ends of bale.

Twine Spacing (A) is the distance between twine wraps. Spacing is increased or decreased depending on how fast the twine arms move across the bale.

Mechanical twine arm spacings ranges are 5, 10, 15, and 20 cm (2, 4, 6, and 8 in).

Monitor-controller twine spacing range is between 2—26 cm (1—10 in) at 1.0 cm (0.5 in) increments. Initial setting is 10 cm (4 in).

To obtain uniform twine spacing on a bale, the setting for twine arm spacing and the monitor-controller setting for twine spacing must be the same.

Number of Left-Hand End Wraps (B) and Right-Hand End Wraps (C) controls how long the twine arms pause at the end of the bale to apply the set number of end wraps. End wrap setting ranges between 0.5—10 wraps. Initial setting is 2 wraps.

The setting for the number of end wraps is approximate for each twine arm. With various settings of the adjustable twine guide, the twine from both arms are the same distance from the end of bale. The bale has twice the number of end wraps as indicated on the monitor-controller. (See SET TWINE END WRAP DISTANCE in this section.)

Left-Hand or Right-Hand (D) End Wrap Distance limits the twine arm travel to the outer ends of the bale. The end wrap distance can be set between 8—26 cm (3—10 in). An initial setting of 10 cm (4 in) has been set for both sides. The settings can be changed in 1.0 cm (0.5 in) increments.

End wrap distances are an approximate indication where twine is placed on the bale.

To place twine the same distance from the edge on both ends, a slightly different setting can be required for each end.

Check setting of mechanical twine guide when revising monitor-controller settings.

Re-Extension Wrap Distance (E) is a feature that can help prevent twine unrolling. It places a wrap of twine back toward the middle of the bale from the left-hand end wrap location AFTER the set number of end wraps have been applied. Re-extension wrap settings are 20, 40, and 60 cm (8, 16, and 24 in). (See SET TWINE RE-EXTENSION in this section.)

Cinch Wrap is a feature that can decrease loose twine and improve twine spacing on the left-hand end of the bale. It places a wrap of twine approximately 25 cm (10 in) away from left-hand end wrap location PRIOR to applying the set number of end wraps. (See SET CINCH WRAP in this section.)

Dry Straw Twine Wrap is a feature to place twine across the full width of the bale quickly to reduce straw from flaking off the bale during tying. Twine arms are programmed to quickly move to right, left, and back to the right side to resume normal tying cycle. Turn program ON or OFF. (See DRY STRAW TWINE WRAP PROGRAM in this section.)
