Adjust B-Wrap Sensor

1.

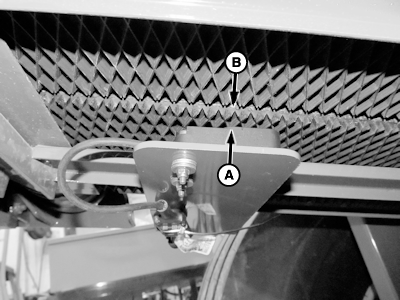

   E75422-UN-23APR14

   A - Sensor

   B - Belt

   Check the distance between the top of sensor (A) and belt (B). Distance must be within specification.

   Sensor-to-Belt	Distance	4—8 mm (0.16—0.31 in)

---




2. Be sure that sensor (A) is straight on the bracket as screws are tightened.

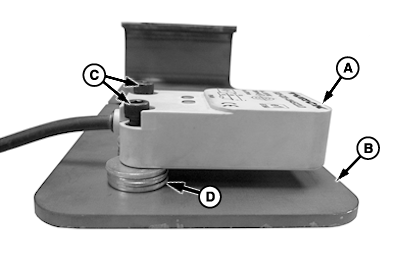

   E69287-UN-08JAN13

   A - Sensor

   B - Bracket

   C - Screw and Lock Nut, M4 x 30 mm (2 used)

   D - Washer, 5.3 x 15 x 1.2 mm (4 used per screw)

   Sensor (A) is mounted to bracket (B) with screws and lock nuts (C), and washers (D).

   To adjust sensor clearance, remove the screws and lock nuts. Add or remove washers under the sensor as needed to obtain the proper clearance.

---
