Slip Clutch Alert System

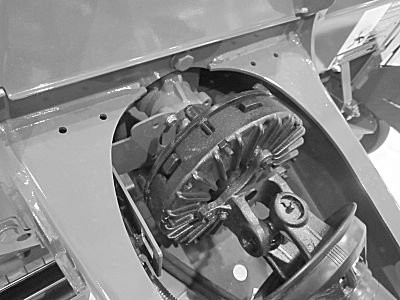

E83992
E83992-UN-01AUG17

This system alerts the operator by an alarm when either the main PTO drive sensor or the drive roll sensor detects one of the clutches slipping.

The speed compensation program applies the desired twine spacing or net wrap layers regardless of PTO speed. It uses the main drive (PTO) speed sensor to adjust either the twine or the net application functions to maintain settings when the baler is operated at speeds different than the rated PTO speed.
