Adjust Twine Guide Arm Spring

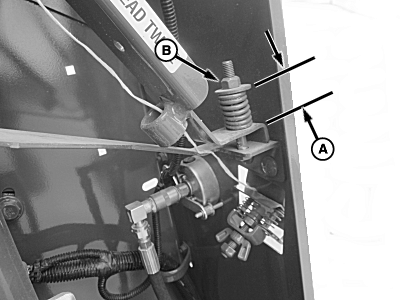

  1. E83994
    E83994-UN-01AUG17

    A - Length, 28—32 mm

    B - Flange Nut

    The twine guide arm spring length (A) must be set to 28—32 mm (1.10—1.25 in) to provide proper tension on the twine arm.


  2. Increase or decrease the spring length by loosening or tightening flange nut (B).

DP99999,0000DC4-19-20170801
