Replace Bale Diameter Sensor

1.

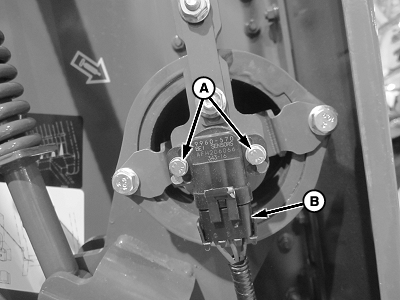

   E83418-UN-08JUN17

   A - Cap Screw (2 used)

   B - Connector

   Unplug the connector (B) from the sensor.

---




2. Remove and retain the cap screws (A).

3.

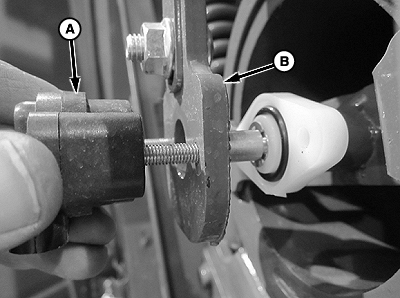

   E83538-UN-15JUN17

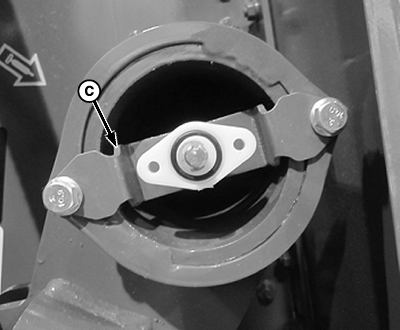

   E83539-UN-15JUN17

   A - Sensor

   B - Shaft Bracket

   C - Shaft Bracket Assembly

   Remove the sensor (A) from the shaft bracket (B). Replace the sensor (A).

---




4. Remove the shaft bracket assembly (C), if necessary.

5.
   E83418-UN-08JUN17

   A - Cap Screw (2 used)

   B - Connector

   Reinstall the cap screws (A) and plug in the connector (B).

---
