Replace Bale Shape Sensor

1.

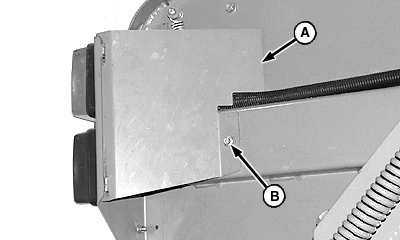

   E47621-UN-07JAN00

   Right-Hand Side Shown

   A - Shield

   B - Self-Tapping Cap Screw

   Engage the gate lock and raise the tension arm.

---




2. Turn the monitor-controller OFF. Turn the tractor ignition key to the OFF position and remove the key.

3. Remove and retain cap screw (B). Rotate the shield (A) away from the baler.

4.

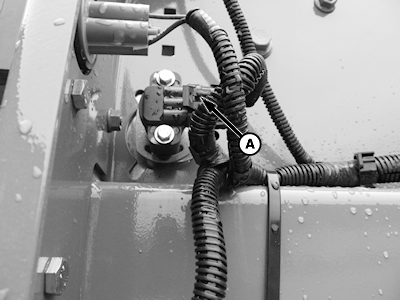

   E62314-UN-03APR12

   Right-Hand Side Shown

   A - Wire Connector

   Disconnect wire connector (A).

---




5.

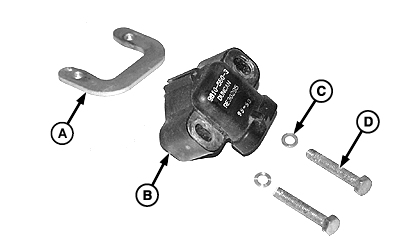

   E84114-UN-12SEP17

   A - Mounting Strap

   B - Sensor

   C - Washer (2 used)

   D - Cap Screw (2 used)

   Remove cap screws (D) and washers (C) retaining the sensor (B), and mounting strap (A).

---




6. Install new sensor in the reverse order of removal.

7. Calibrate the sensor using the BaleTrak™ Monitor-Controller. (See ADJUST BALE SHAPE SENSOR [CHANNELS 007 and 009] in the Service—BaleTrak™ Pro and Plus section.)
