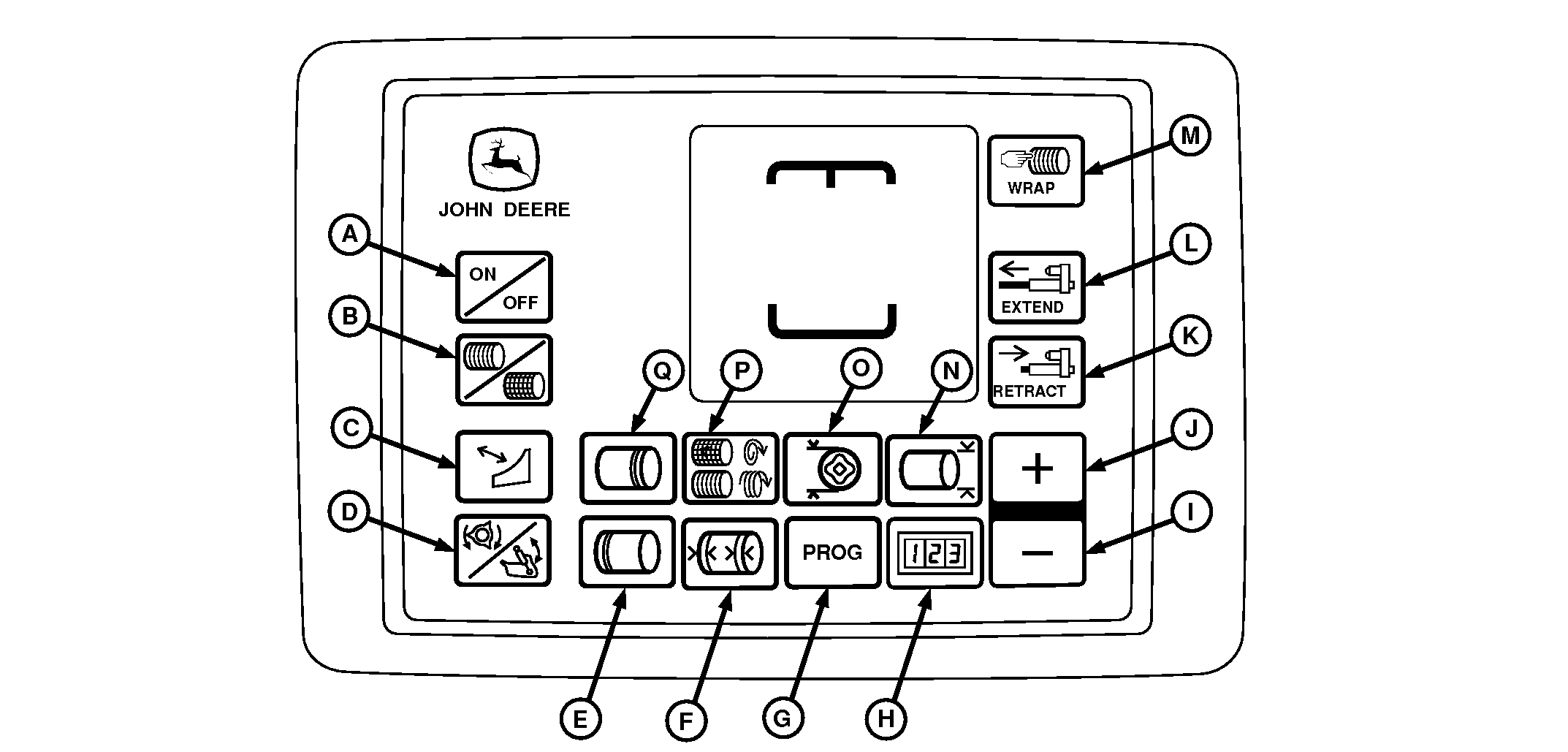

BaleTrak™ Plus Monitor-Controller Keys and Switches

E83504
E83504-UN-16JUN17

A - Monitor ON-OFF Switch

B - Selector Switch (Twine or Net Mode1)

C - Engage/Disengage Knives

D - Raise/Lower Drop Floor

E - Number of Left-Hand End Wraps (Twine Mode Only)

F - End Wrap Distance (Twine Mode Only)

G - Program

H - Bale Counters

I - Minus Key

J - Plus Key

K - Actuator Retract—Manual (Twine Mode Only2)

L - Actuator Extend—Manual (Twine Mode Only3)

M - Wrap Cycle—Manual Start

N - Bale Diameter

O - Variable Core Diameter1

P - Twine Spacing or Number of Net Wraps

Q - Number of Right-Hand End Wraps (Twine Mode Only)

1 Optional equipment.
2 Net actuator does not move when RETRACT key is pressed in the Net mode
3 Net actuator does not move when EXTEND key is pressed in the Net mode

DP99999,0000DD0-19-20170825
