Set Bale Diameter

E52443
E52443-UN-02JUN08

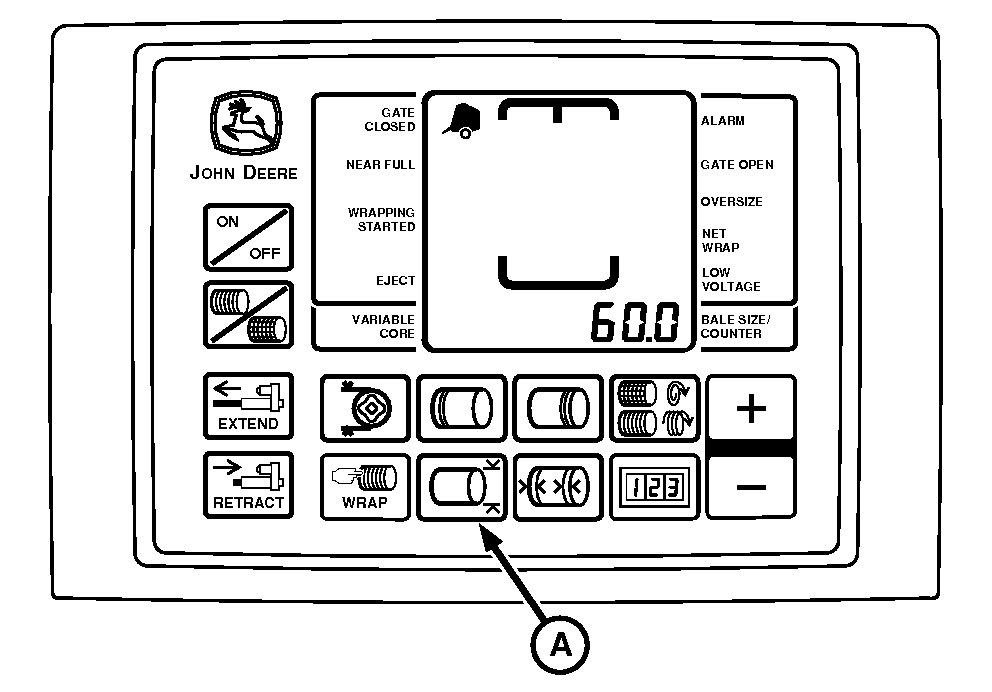

BaleTrak™ Pro Monitor

E84120
E84120-UN-28AUG17

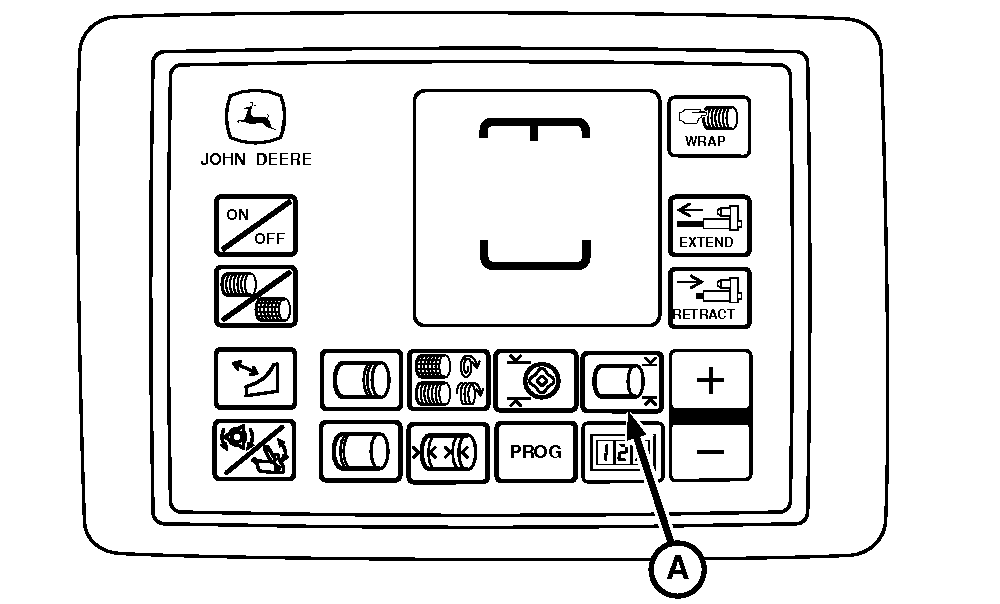

BaleTrak™ Plus Monitor

A - Bale Diameter Key

The initial setting for bale diameter is 168 cm (66 in).

The bale diameter can be set from 81—183 cm (32—72 in) at 1 cm (0.5 in) increments.

  • Press the BALE DIAMETER key (A) and the PLUS key to increase the diameter setting.
  • Press the BALE DIAMETER key (A) and the MINUS key to decrease the diameter setting.

The optional variable core diameter setting must be at least 10 cm (4 in) less than the bale diameter setting.

The variable core setting need not be changed if the bale size is increased, unless desired.

DP99999,0000DD2-19-20170831
