Adjust Bale Diameter Display (Channel 028)

1.

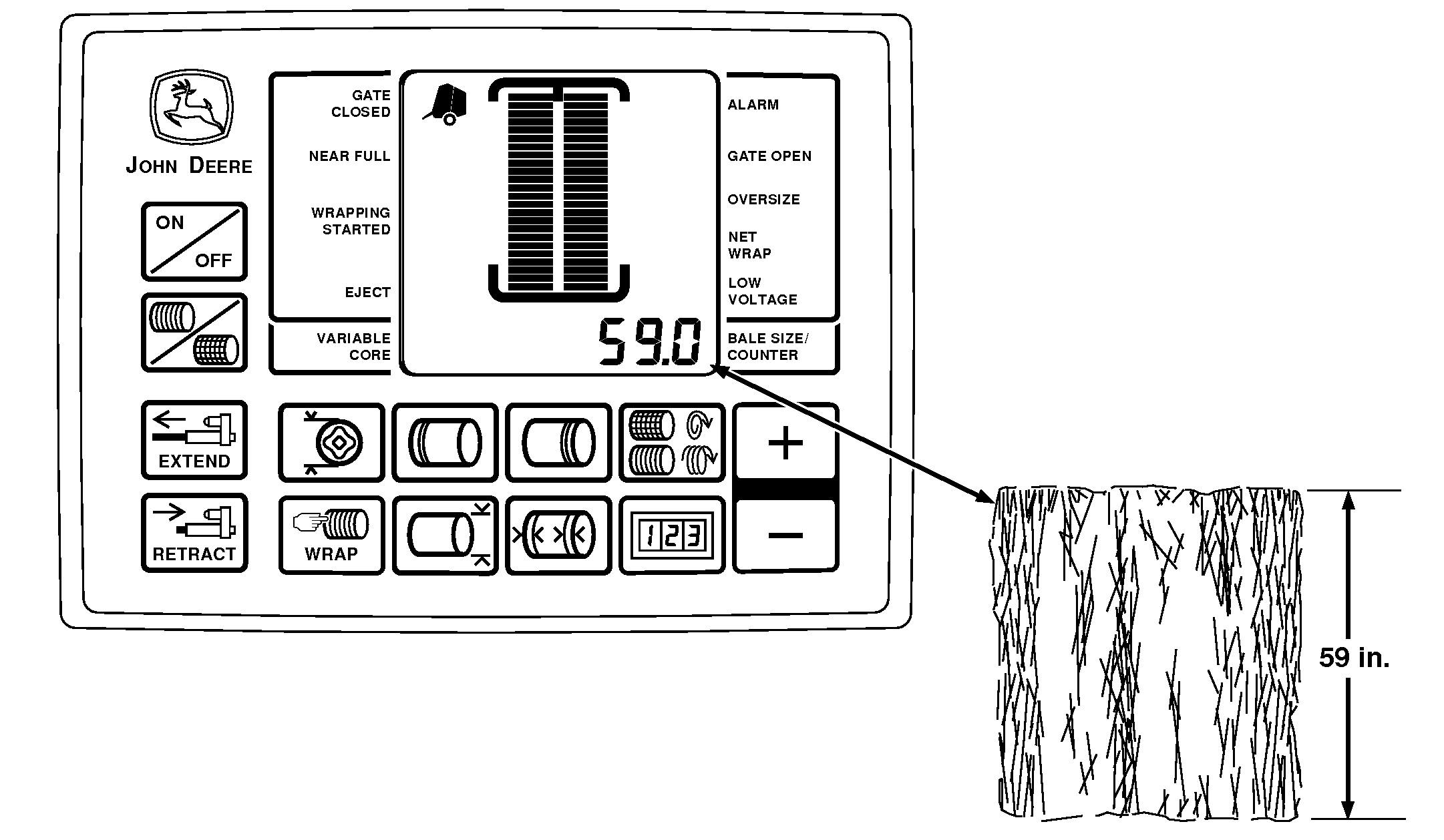

   E84119-UN-25AUG17

   Access Channel 028 on the BaleTrak™ monitor-controller. (See Enter Customer [Channels 001—037] in this section.)

---




2. Make a bale and apply twine or the net wrap.

3. Before ejecting the bale, note the bale size reading on the monitor.

4. To check actual bale size, measure the bale horizontally and vertically on both ends. Add the four measurements together and divide by four to determine average bale diameter.

   Eject the bale and measure the actual size of the bale.

5. Compare the measured bale size to the calculated size previously noted. If the values are different, perform the following steps to calibrate the display.

6. Do not eject the bale.

   Make another bale the same size as the previously measured bale as indicated by Channel 028 on the monitor-controller. Wrap the bale and disengage the PTO. Do not eject the bale.

7. Note the bale size that is displayed on Channel 028 on the BaleTrak™ monitor.

8. To match the measured bale size, adjust the displayed size with the plus and minus keys. Press the plus and minus keys simultaneously to record the new value as the actual bale size. The monitor beeps to confirm that the change was recorded.

9. Repeat the procedure as necessary.
