Dry Straw Twine Wrap Program (Channel 002)

E52451
E52451-UN-18JUN03

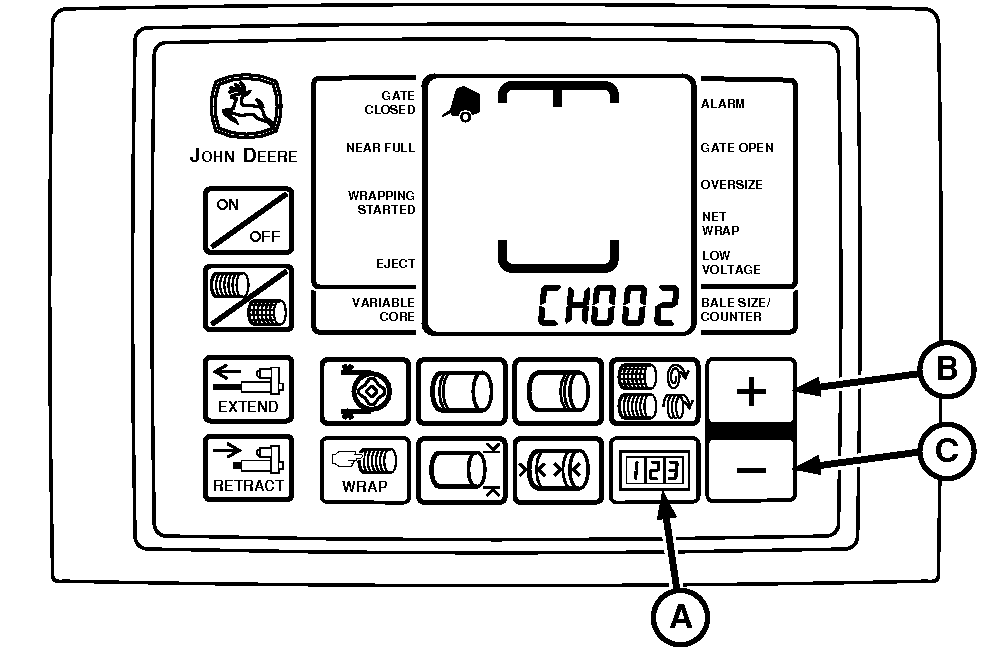

BaleTrak™ Pro Monitor

A - COUNTER Key

B - PLUS Key

C - MINUS Key

When baling dry straw, it can be desirable to place twine across the full width of the bale to prevent straw from flaking off in the baler.

The dry straw twine program provides for full speed twine arm movement from right to left, after the normal full speed starting pass from left to right. The twine arms return to the right side, pause to place the set number of right-end wraps on the bale, and continue to apply twine as set in the monitor-controller.


To Access Program:

  1. Turn the tractor ignition key to the ON position. Do not start the tractor engine.

  2. Press and hold the COUNTER key (A) while turning the monitor-controller ON.

  3. Continue to hold the COUNTER key and press the PLUS key (B) until CH002 appears in the digital display.

  4. Release the COUNTER key. OFF is displayed when the program is off.

  5. Press the PLUS key (B) to turn on the program.

  6. Turn the monitor-controller OFF to enter the setting into memory. This program stays active until CH002 is accessed again and the MINUS key (C) is used to turn the program OFF.
