Set Twine Re-Extension (Channel 003)

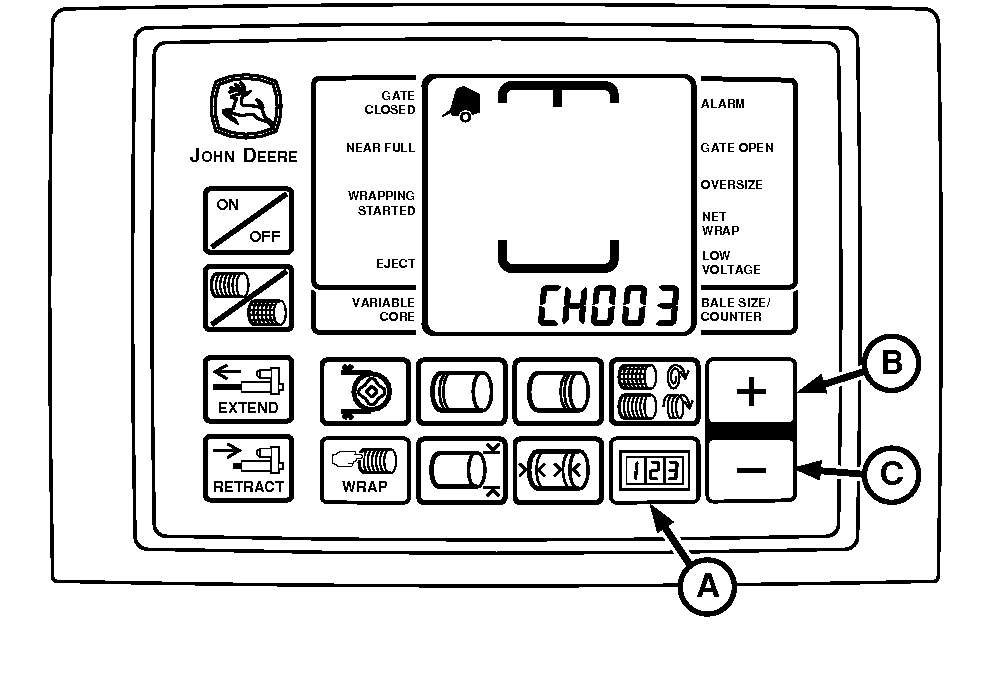

E52452
E52452-UN-18JUN03

BaleTrak™ Pro Monitor

A - COUNTER Key

B - PLUS Key

C - MINUS Key

Re-extension is a feature that can help prevent twine unrolling. It places a wrap of twine back toward the middle of the bale at a preset distance from the left-hand end wrap location. The additional twine wrap is applied after the set number of end wraps have been applied.

Setting

Distance From Left-Hand End Wrap

8

Approximately 20 cm (8 in)

16

Approximately 40 cm (16 in)

24

Approximately 60 cm (24 in)


To Access Special Wrap Program:

  1. Turn the tractor ignition key to the ON position. Do not start the tractor engine.

  2. Press and hold the COUNTER key (A) while turning the monitor-controller ON.

  3. Continue to hold the COUNTER key and press the PLUS key (B) until CH003 appears in the digital display.

  4. Release the COUNTER key and view the current setting.

    • Press the PLUS key (B) to increase the setting.
    • Press the MINUS key (C) to decrease the setting.

  5. Turn the monitor-controller OFF to enter the setting into memory.

  6. Turn the tractor ignition key to the OFF position and remove the key.
