Set Near-Full Indicator Set Point
(Channel 010)

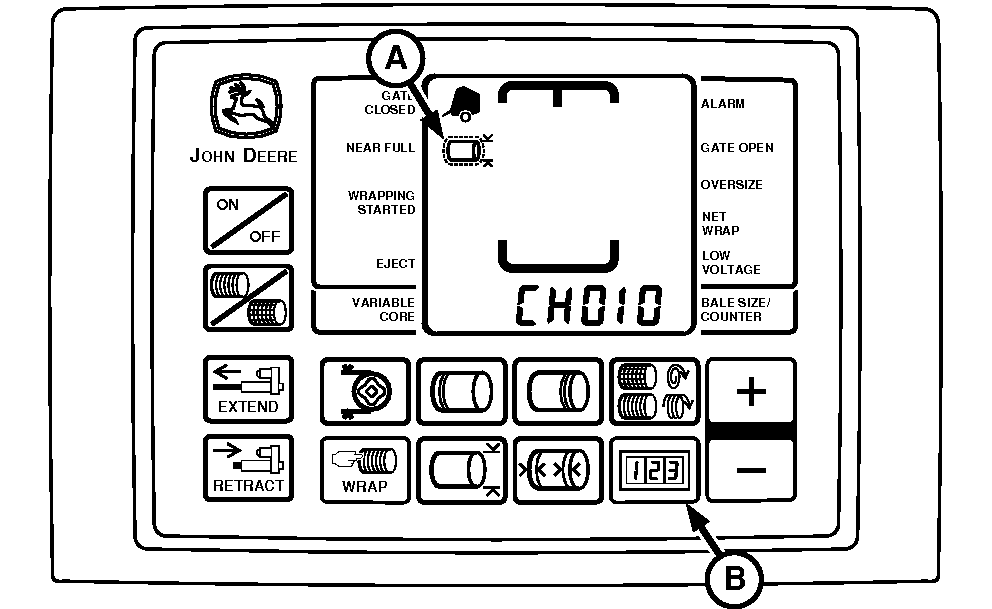

E52455
E52455-UN-18JUN03

A - Near-Full Indicator

B - COUNTER Key

The NEAR-FULL indicator (A) informs the operator when the bale has almost reached the desired size, based on the bale diameter setting. The point below the diameter setting, at which the indicator comes on, is adjustable between 1—27 cm (0.5—10.0 in), in 1 cm (0.5 in) increments.

The initial setting is 11 cm (4.5 in).

If the bale diameter is set at 183 cm (72 in) and the near-full distance is left at the initial setting of 11 cm (4.5 in), the near-full indicator comes on when the bale diameter reaches 172 cm (67.5 in).

If the bale diameter setting is changed, the near-full indicator set point need not be changed, unless a different near-full distance is desired.


To Change Near-Full Indicator Set Point:

  1. Turn the tractor ignition key to the ON position. Do not start the tractor engine.

  2. Press and hold the COUNTER key (B) while turning the monitor-controller ON.

  3. Continue to hold the COUNTER key and press the PLUS key until CH010 appears in digital display.

  4. Release the COUNTER key and view current near full setting 1—27 cm (0.5—10.0 in).

  5. Increasing the near-full distance to the highest setting of 27 cm (10.0 in) provides the maximum time between NEAR-FULL indication and the wrapping cycle.

    Decreasing the near full distance to the lowest setting of 1 cm (0.5 in) minimizes the time between the NEAR-FULL indication and the wrapping cycle.

    Use the PLUS and MINUS keys to change the near-full distance to the desired setting.

  6. Turn the monitor-controller OFF to enter the setting into memory.

  7. Turn the tractor ignition key to the OFF position and remove the key.
