Net Wrap and B-Wrap Feature
(Channel 203) (Turning On and Off)

E84586
E84586-UN-14SEP17

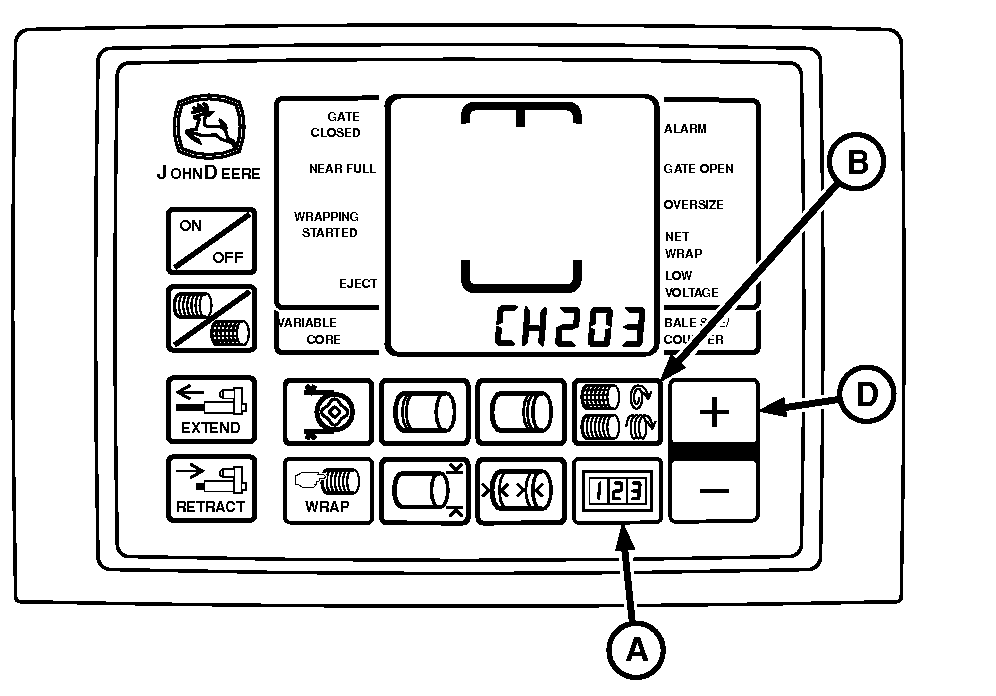

BaleTrak™ Pro Monitor

E84266
E84266-UN-28AUG17

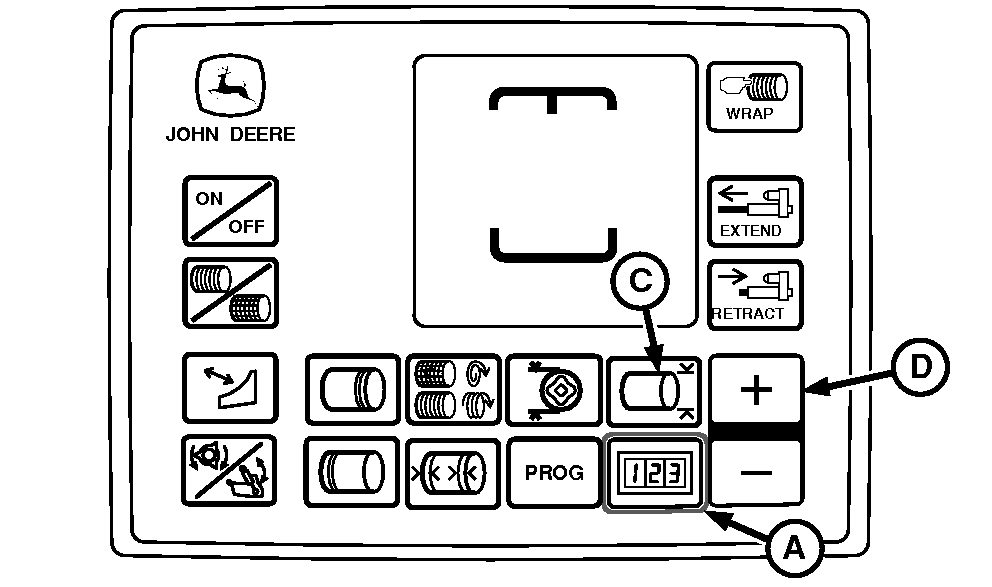

BaleTrak™ Plus Monitor

A - COUNTER Key

B - NUMBER OF WRAPS Key

C - BALE DIAMETER Key

D - PLUS Key

The net wrap feature can be turned OFF, ON, or switched to the B-Wrap mode using Channel 203.

The model number displayed on the monitor must match the current baler model number. The net wrap, B-Wrap, twine, slip clutch alert, and optional variable core features only operate correctly when the model numbers match.

If both the net wrap and twine features are turned OFF, the monitor considers the twine feature ON.


Turning Feature On and Off:

  1. Turn the tractor ignition key to the ON position. Do not start the tractor.

  2. Access the setup channels as follows:

    1. BaleTrak™ Pro Monitor: Press and hold both the COUNTER key (A) and the NUMBER OF WRAPS key (B) while turning the monitor-controller ON.

    2. BaleTrak™ Plus Monitor: Press and hold both the COUNTER key (A) and the BALE DIAMETER key (C) while turning the monitor-controller ON.

    3. Verify that CH201 is displayed on the monitor.

  3. Release both keys. The baler model number is displayed. Verify that the correct model number is shown.

  4. Press and hold the COUNTER key and press the PLUS key (D) until CH203 is displayed.

  5. Release the keys. The wrap mode setting is displayed.

    1. When the value is 0 the net mode is OFF.

    2. When the value is 1 the net mode is ON.

    3. When the value is b1 the B-Wrap mode is ON.

    Bale diameter must be set to 168 cm (66 in) and the push bar must be disengaged to operate in the B-Wrap mode.

  6. To change the wrap mode setting, press the PLUS or MINUS key until the desired value is displayed.

  7. To enter the setting into memory, turn the monitor-controller OFF.

  8. Turn the monitor-controller ON and verify the baler model number. The model number is displayed for approximately 2 seconds. If the displayed baler model number is incorrect, see BALER MODEL PROGRAM (CHANNEL 201) in this section.

  9. Turn the tractor ignition key to the OFF position and remove the key.
