Slip Clutch Alert PTO Speed Sensor
(Channel 204) (Turning On and Off)

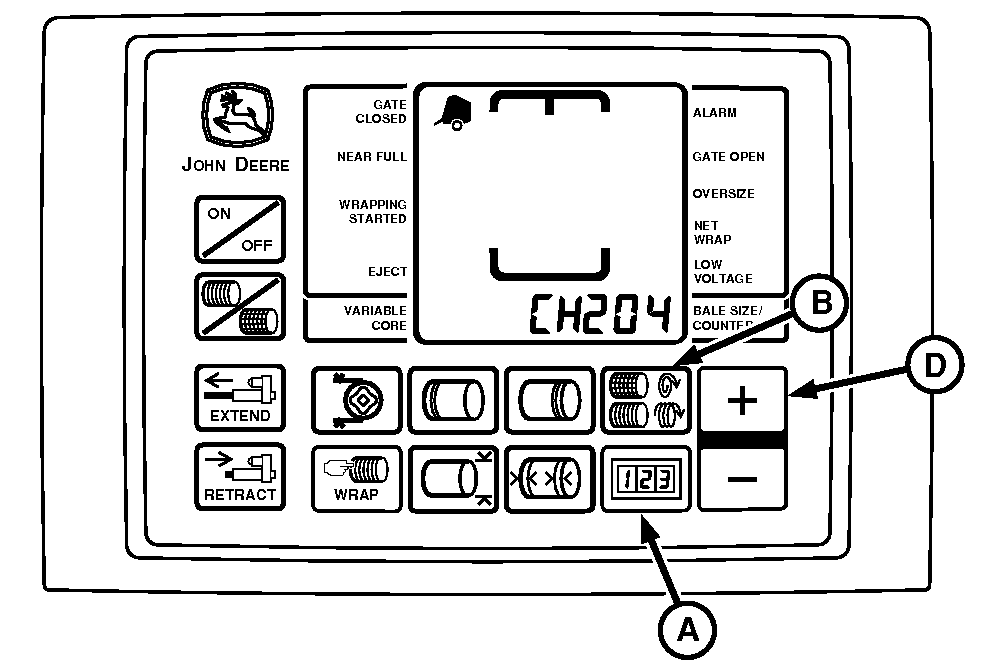

E84587-UN-14SEP17

BaleTrak™ Pro Monitor

E84266-UN-28AUG17

BaleTrak™ Plus Monitor

A - COUNTER Key

B - NUMBER OF WRAPS Key

C - BALE DIAMETER Key

D - PLUS Key

The PTO speed sensor can be turned OFF or ON using channel 204.

The entire slip clutch alert feature can be turned off by changing the setting to 0.

Both channels 204 and 205 must be turned ON to use the slip clutch alert and speed compensation features.

Turning Feature On and Off:

1. Turn the tractor ignition key to the ON position. Do not start the tractor.

2. Access the setup channels as follows:

   1. BaleTrak™ Pro Monitor: Press and hold both the COUNTER key (A) and the NUMBER OF WRAPS key (B) while turning the monitor-controller ON.

   2. BaleTrak™ Plus Monitor: Press and hold both the COUNTER key (A) and the BALE DIAMETER key (C) while turning the monitor-controller ON.

   3. Verify that CH201 is displayed on the monitor.

3. Release both keys. The baler model number is displayed. Verify that the model number is correct.

4. Press and hold the COUNTER key and press the PLUS key (D) until CH204 is displayed.

5. Release the keys.

6. Check the current speed sensor status. To change the status:

   1. To turn the PTO speed sensor ON, press the PLUS key (D) until 540 is shown in the display.

   2. To turn the PTO sensor OFF, press the PLUS or MINUS key until a value of 0 is displayed.

7. To enter the setting into memory, turn the monitor-controller OFF.

8. Turn the monitor-controller ON and verify the baler model number. The model number is displayed for approximately 2 seconds. If the baler model displayed is incorrect, see BALER MODEL PROGRAM (CHANNEL 201) in this section.

9. Turn the tractor ignition key to the OFF position and remove the key.
