Slip Clutch Alert Drive Roll Speed Sensor
(Channel 205) (Turning On and Off)

E84588
E84588-UN-14SEP17

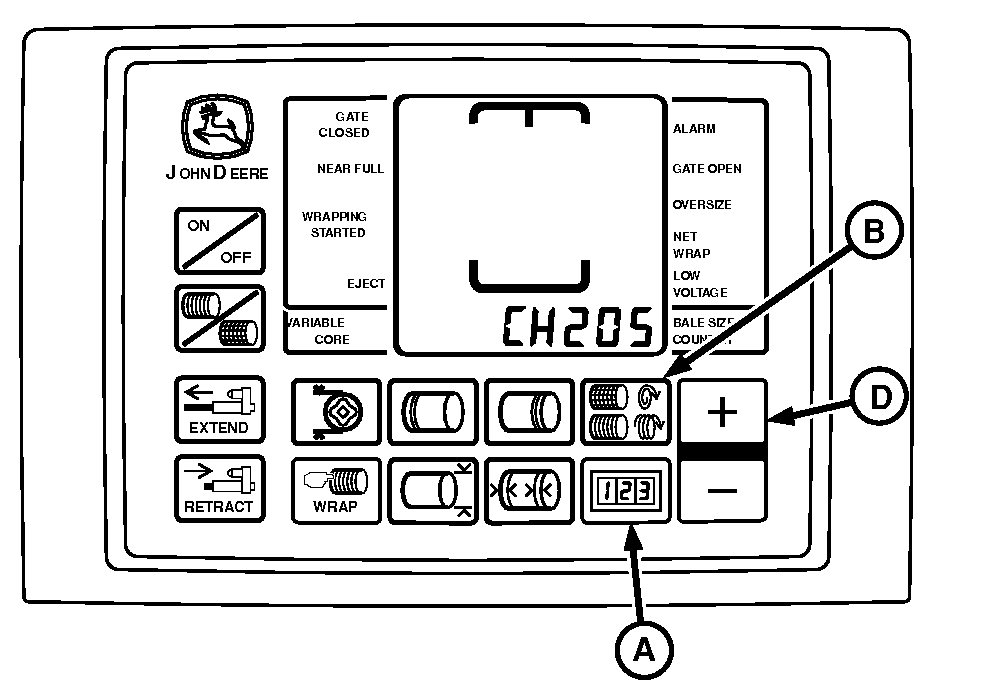

BaleTrak™ Pro Monitor

E84266
E84266-UN-28AUG17

BaleTrak™ Plus Monitor

A - COUNTER Key

B - NUMBER OF WRAPS Key

C - BALE DIAMETER Key

D - PLUS Key

The pickup speed sensor can be turned OFF and ON using channel 205. The PTO speed sensor must be on for the slip clutch alert feature to work.

Turning OFF the drive roll sensor on channel 205 and turning ON the PTO sensor on channel 204 allows automatic speed compensation during the wrapping cycle. If there is a malfunction, the pickup speed sensor can be turned OFF by changing the channel 205 value to 0.

Both channels 204 and 205 must be turned ON to use slip clutch alert features.


Turning Feature On and Off:

  1. Turn the tractor ignition key to the ON position. Do not start the tractor.

  2. Access the setup channels as follows:

    1. BaleTrak™ Pro Monitor: Press and hold both the COUNTER key (A) and the NUMBER OF WRAPS key (B) while turning the monitor-controller ON.

    2. BaleTrak™ Plus Monitor: Press and hold both the COUNTER key (A) and the BALE DIAMETER key (C) while turning the monitor-controller ON.

    3. Verify that CH201 is displayed on the monitor.

  3. Release both keys. The baler model is displayed. Verify that the model number is correct.

  4. Press and hold the COUNTER key and press the PLUS key (D) until CH205 is displayed.

  5. Release the COUNTER key.

  6. Check the current speed sensor status. To change the status:

    1. To turn the pickup speed sensor OFF, press the PLUS or MINUS key until a value of 0 is displayed.

    2. BaleTrak™ Pro Monitor: To turn the speed sensor ON, press the PLUS key until 310 is displayed.

    3. BaleTrak™ Plus Monitor: To turn the speed sensor ON, press the PLUS key until 170 is displayed.

  7. To enter the setting into memory, turn the monitor-controller OFF.

  8. Turn the monitor-controller ON and verify the baler model number. The model number is displayed for approximately 2 seconds. If the displayed baler model number is incorrect, see BALER MODEL PROGRAM (CHANNEL 201) in this section.

  9. Turn the tractor ignition key to the OFF position and remove the key.
