Machine Safety Features

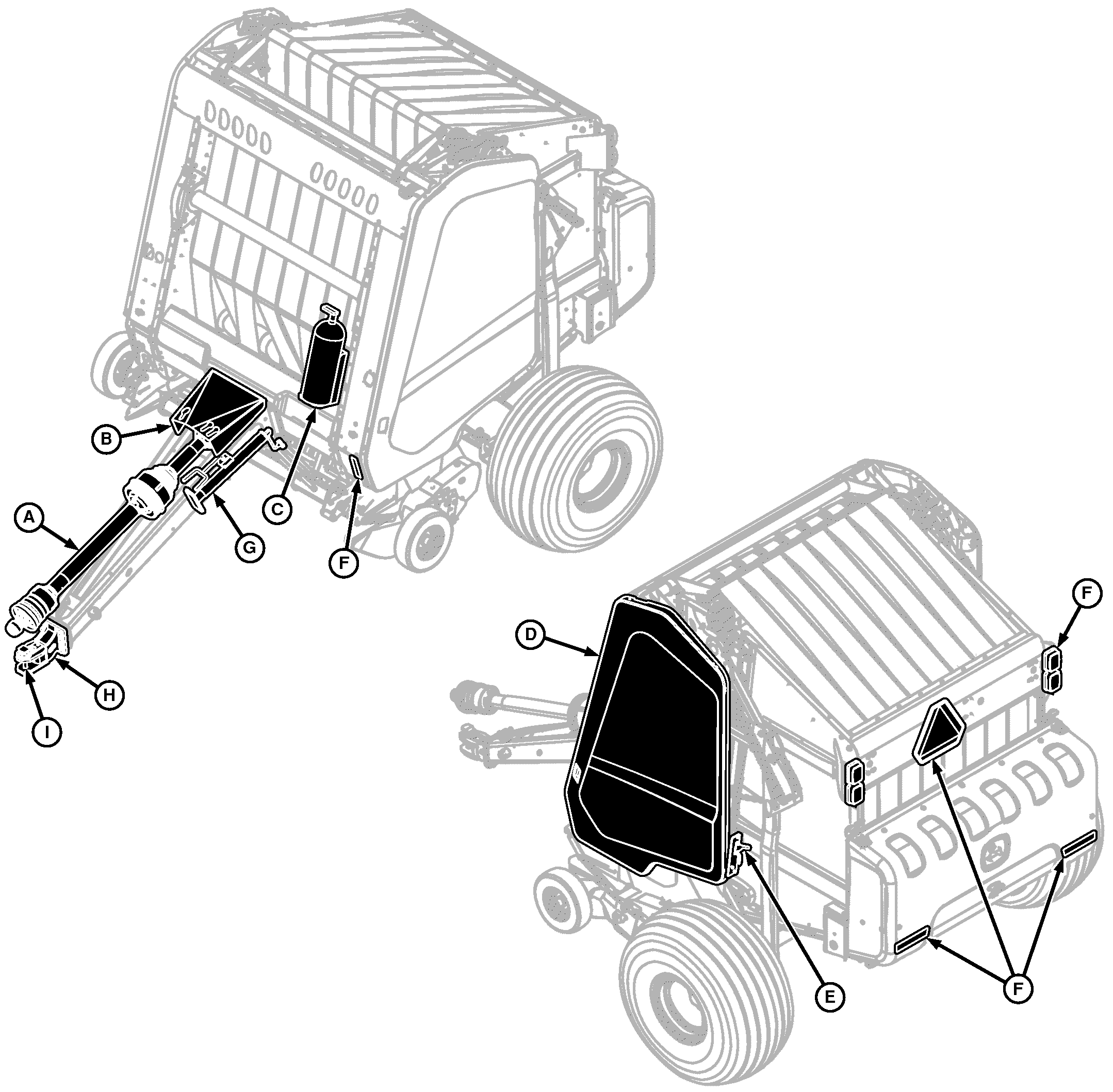

E84087-UN-09AUG17

A — Fully shielded power take-off (PTO).

B — Hinged shielding over slip clutch covers the rotating input shaft. Provides easy service access.

C — Fire extinguisher mounting location to accommodate installation of extinguisher.

D — Doors or shields on both sides of baler cover drive components. Mechanical latch makes opening and closing convenient for service access.

E — Rear gate lockout secures gate in open position for access to inside of bale chamber.

F — Slow moving vehicle (SMV) emblem, flashing warning lights, red tail lights, and reflectors enhance visibility during road transport. Flashing warning lights synchronize with tractor turn signals.

G — Jackstand supports and positions hitch for attaching and detaching.

H — Safety chain further secures machine to tractor drawbar.

I — Drawbar hitch pin retainer keeps implement hitch pin in place.
