001
|
Return to Initial Settings
|
Display reads 050 for current settings. Hold the PLUS and MINUS
keys simultaneously until 099 shows and then release to reset to initial
settings.
|
|
002
|
Dry Straw Twine Wrap Program
|
Select OFF or ON
|
|
003
|
Re-extension Twine Application Program
|
Select OFF to disable. Select 8, 16, or 24 for desired spacing.
|
|
004
|
Cinch Wrap Twine Application Program
|
Select OFF or ON
|
|
005
|
Calibrate Bale Diameter Display
|
Calibration for the bale diameter sensor.
Raise tension arm until all the way up and the gate is fully
open. Press PLUS and MINUS keys at the same time to save calibration
|
|
006
|
Adjust Net Wrap Delay
|
Delay can be set between 0—8 seconds.
|
|
007
|
Calibrate Right-Hand Bale Shape Display
|
Use strap for holding bale shape sensor in the tensioned position
then press PLUS and MINUS keys together to save the calibration
|
|
008
|
Set Measurement Units
|
Set to English (En) or Metric (Si) units using PLUS or MINUS
key.
|
|
009
|
Calibrate Left-Hand Bale Shape Display
|
Use strap for holding bale shape sensor in the tensioned position
then press PLUS and MINUS keys together to save the calibration
|
|
010
|
Set Near-Full Indicator Set Point
|
Set near full alarm between 0.5—10.0 inches from the selected
bale diameter.
|
|
011
|
Adjust Bale Shape Display Sensitivity
|
Adjust bale shape display sensitivity from 1 (least sensitive)
to 5 (fastest reaction).
|
|
012
|
Test Net Switch
|
Shows net switch state. 0 indicates closed circuit (normal,
switch is mechanically open) and 1 indicates the net cutting with
tone
|
|
013
|
Test Oversize Bale Switch
|
Shows oversize switch state. Reads 12 when switch is open and
00 with an audible tone when switch is depressed (oversize bale).
|
|
014
|
Test Right-Hand Gate Latch Switch
|
Not used on 460M and 560M balers.
|
|
015
|
Test Left-Hand Gate Latch Switch
|
Not used on 460M and 560M balers.
|
|
016
|
PTO Speed Sensor Output
|
Shows the measured PTO speed in rpm (rated is either 540 or
1000 depending on channel 204 setting)
|
|
017
|
Pickup Speed Sensor Output
|
Shows the measured pickup speed in rpm (rated is either 310
for non-precutter or 170 for precutter, set with channel 205)
|
|
018
|
Test Twine or Net Actuator Current
|
Allows the operator to use the extend/retract buttons for the
net actuator. Displays current draw (1—8A moving, or 20—30A stalled)
|
|
019
|
Check Tractor Voltage
|
Displays supply voltage. 9.7 V is the minimum voltage
|
|
020
|
Test Liquid Crystal Display
|
Shows all of the segments on the LCD panel
|
|
021
|
Maximum Measured Actuator Current
|
Measures maximum actuator current read during the twine or net
application cycle
|
|
022
|
Top Twine Sensor Pulley Test
|
Not used
|
|
023
|
Bottom Twine Sensor Pulley Test
|
Not used
|
|
024
|
Test Drop Floor Sensor
|
Drop floor sensor state. Reading of 00 indicates that drop floor
is dropped. Reading of 12 (with tone) indicates that drop floor is
up.
|
|
025
|
Test Knife Engage Sensor
|
Knife engage sensor state. Reading of 00 indicates that knives
are not engaged. Reading of 12 (with tone) indicates that knives are
engaged.
|
|
026
|
Flax Function
|
Not used
|
|
027
|
Bale Size Slope Tuning
|
Adjustment for the slope used in calculating the bale size.
This setting is 2776 for 460M and 560M machines.
|
|
028
|
Field Calibration for Bale Size
|
In field bale size calibrations, create 2—3 bales of the same
calculated size and measure the actual bale size. Create a bale of
same size and leave in the chamber. Adjust channel value to match
measured bale size. Press the PLUS and MINUS keys at the same time
to save the calibration.
|
|
029
|
Twine Arm Calibration Value
|
Must extend the actuator with 2x4 on the right-hand side of
the side sheet. Enter value displayed by holding both PLUS and MINUS
keys.
|
|
030
|
Set Actuator Length
|
Sets length of the actuator.
|
|
031
|
Twine End Stop Adjustment
|
Not used, for the single twine arm.
|
|
032
|
Automatic Tying
|
Set automatic tying to ON or OFF.
|
|
033
|
Set Time of the Twine Eject
|
Sets amount of delay time between the finishing twine cycle
and displaying the gate open.
|
|
034
|
B-Wrap Cut Position with Metal Strip
|
Sets the number of pulses counted after seeing the metal strip
until cutting the B-Wrap NOTE: The value for this setting
must be less than the setting in channel 035.
|
|
(BaleTrak™ Pro: minimum is 16, maximum is 160, default is 126)
|
|
(BaleTrak™ Plus: minimum is 9, maximum is 88, default is 69)
|
|
035
|
B-Wrap Orientation Adjustment
|
Sets the number of pulses counted before alerting the operator
to turn off the PTO NOTE: The value for this setting must
be greater than the setting in channel 034.
|
|
(BaleTrak™ Pro: minimum is 58, maximum is 240, default is 182)
|
|
(BaleTrak™ Plus: minimum is 31, maximum is 132, default is 101)
|
|
036
|
B-Wrap Optical Sensor Polarity
|
Polarity of the B-Wrap sensor (must be set to 0).
|
|
037
|
B-Wrap Metal Strip Detection Timeout
|
Time out number of pulses for detecting the metal strip.
|
|
(BaleTrak™ Pro: minimum is 126, maximum is 164, default is 150)
|
|
(BaleTrak™ Plus: minimum is 68, maximum is 90, default is 81)
|
|
201
|
Baler Model
|
Select the baler model being used (440E, 450E, 450M, 550M, 460M,
and 560M).
|
|
202
|
Activate/Deactivate Twine
|
Enable twine option. Set to 0 to turn off the twine option and
1 to turn on the twine option.
|
|
203
|
Activate/Deactivate Net Wrap
|
Enables net option. Set to 0 to turn off the net option and
1 to turn on the net option.
|
|
204
|
PTO Speed Sensor Setup
|
Enables speed compensation for tying. Set to 0 to turn feature
off. Set to 540 or 1000, corresponding to proper speed for this machine.
|
|
205
|
Pickup Speed Sensor Setup
|
Enables slip clutch detection. Set to 0 to turn feature off.
|
|
BaleTrak™ Pro: Set to 310 for drive roll speed sensing; channel
209 is forced to 0.
|
|
BaleTrak™ Plus: Set to 170 for rotor shaft speed sensing; channel
209 is forced to 1.
|
|
206
|
PTO Sensor Pulses Per Revolution
|
Sets the numbers of pulses the PTO speed sensor sees in a revolution.
Set to 6.
|
|
207
|
Pickup Sensor Pulses Per Revolution
|
Sets the numbers of pulses the pickup speed sensor sees in a
revolution. Set to 6.
|
|
208
|
Activate/Deactivate Variable Core Feature
|
Enables the variable core feature. Set to 0 to turn off the
variable core and 1 to turn on the variable core.
|
|
209
|
Pickup Type
|
Set to 1 for a precutter machine and 0 for a non-precutter.
|
|
210
|
Enable Twine Pulley Sensors
|
Not used
|
|
211
|
Rotational Sensor Type
|
Indicates whether the old rotational sensors or the new rotational
sensors are used.
|
|
Entering 100 Level Channels
(Channels 0—37)
|

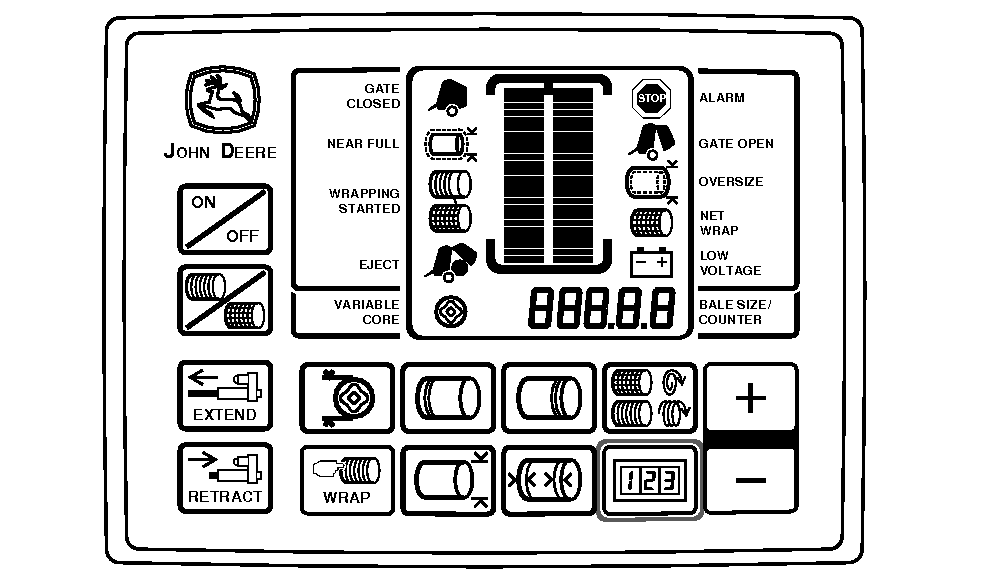

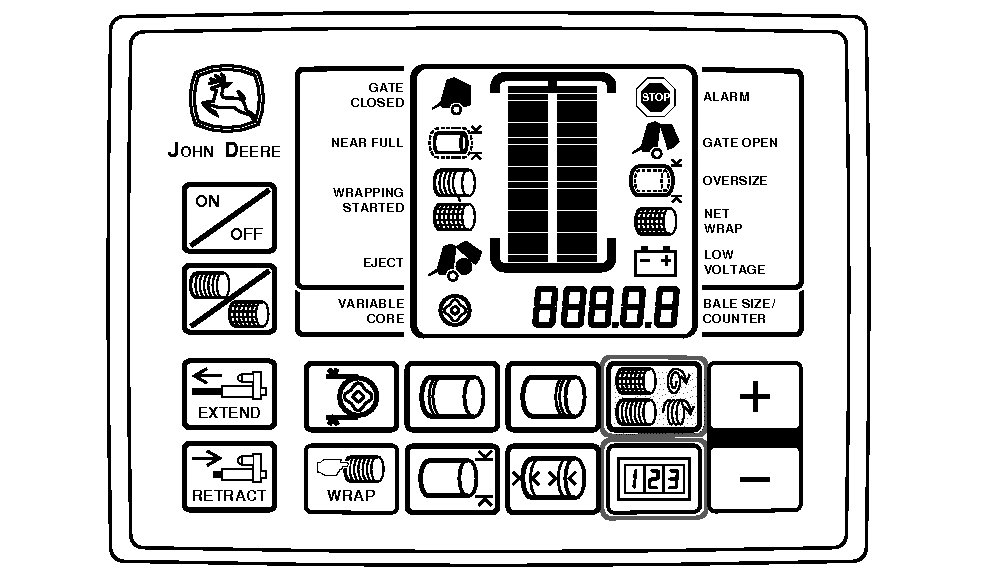

See Display 1 and Display 3
|
Enter 100 level channels by holding the Counter button and then
powering on the monitor. To navigate to the desired channel, hold
the Counter button and press the + or - buttons.
|
|
Entering 200 Level Channels
(Channels 201—211)
|

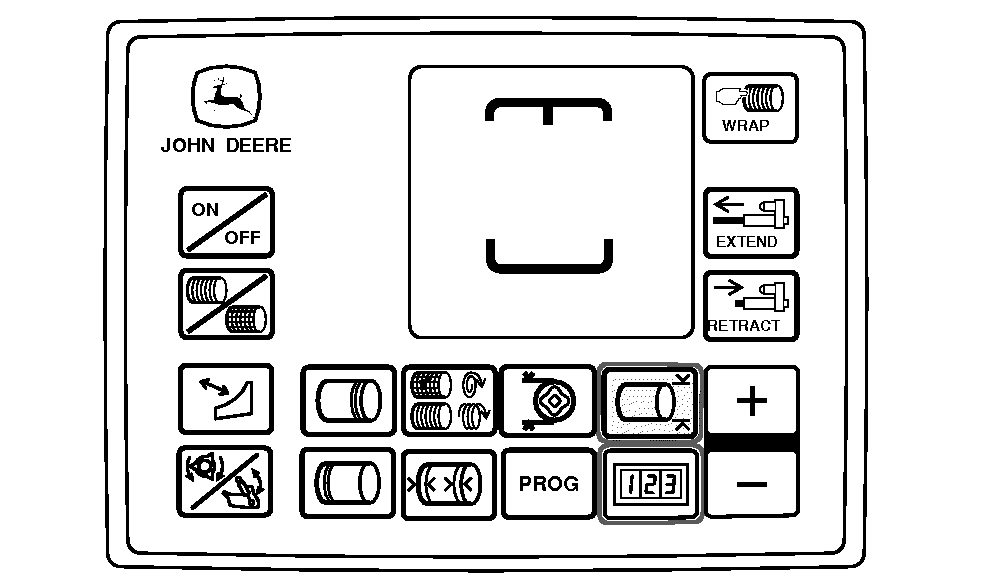

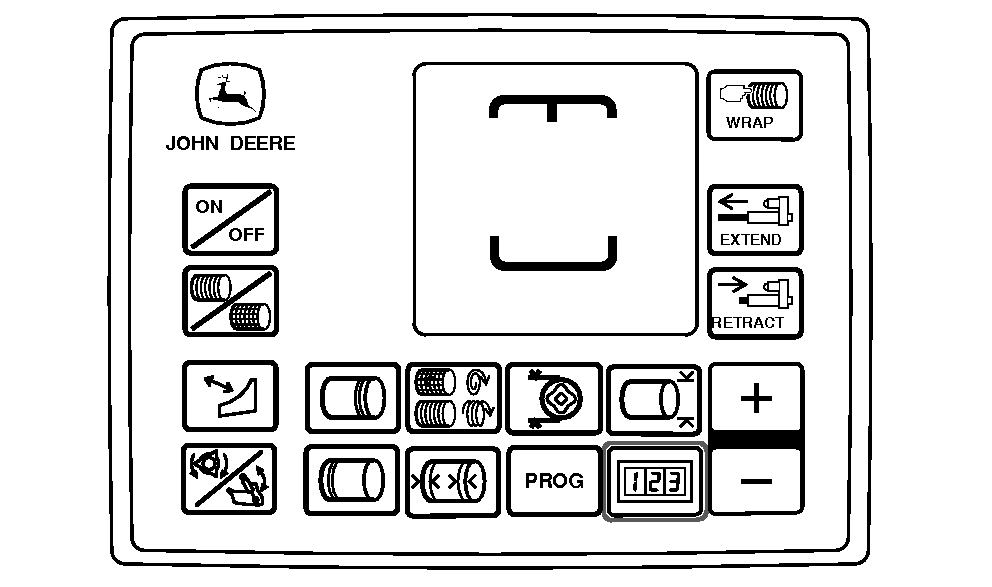

See Display 2 and Display 4
|
BaleTrak™ Pro: Enter 200 level channels by holding both the
Counter and the Number of Wraps buttons and then powering on the monitor.
|
|
Bale Trak™ Plus: Enter 200 level channels by holding both the
Counter and the Bale Diameter buttons and then powering on the monitor.
|
|
To navigate to the desired channel, hold the Counter button
and press the + or - button.
|
