BaleTrak™ Pro and Plus Monitor-Controller System Introduction

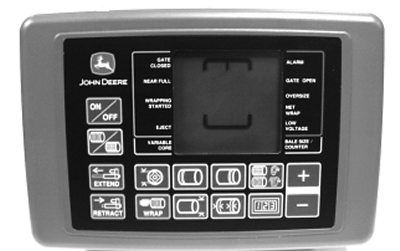

E84051-UN-11AUG17

BaleTrak™ Pro Monitor-Controller

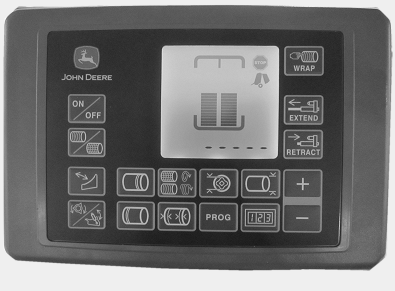

E84050-UN-11AUG17

BaleTrak™ Plus Monitor-Controller

The BaleTrak™ Pro or Plus system provides accurate and useful information to help the operator make the best bales possible.

The BaleTrak™ Pro system is provided with balers equipped with the MegaWide™ Plus and Regular pickups. The BaleTrak™ Plus system is provided with balers equipped with the MegaWide™ HC2 feed system.

The operator can adjust most control settings from the tractor seat without inconvenience or delays. By pushing a single button, twine arms can be extended or extracted, or the auto wrap cycle can be initiated.

The BaleTrak™ Pro or Plus system is factory preset, functional, and ready to use. To become familiar with the settings before adjusting or resetting them, operate the baler briefly with factory settings. The system retains the settings when the power is shut off.

The monitor powers off after approximately 30 minutes of inactivity.

The system can be used to troubleshoot baler malfunctions and gives error code messages during malfunctions. Convenient channels are available to ensure correct baler settings and sensor adjustments.

The BaleTrak™ Pro or Plus system monitors or controls the following baling operations and conditions:

• Bale Diameter
• Bale Shape
• Automatic Twine Application
• Net Wrap (if equipped)
• Bale Eject
• Bale Count
• Gate Closed
• Slip Clutch Alert
• Variable Core Diameter (if equipped)
• Alarms
  • Gate Open
  • Oversize Bale
  • Low Tractor Voltage
  • Net Wrap Misfed or Miscut (if equipped)
  • Error Codes of System Malfunctions
