Variable Core Feature (If Equipped)

E83509-UN-15JUN17

E66837-UN-20JUL12

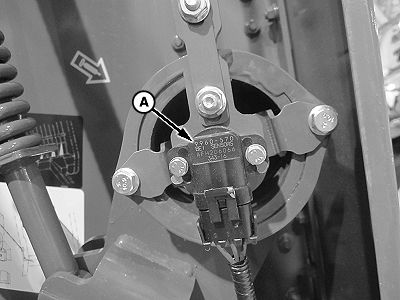

A - Bale Diameter Sensor

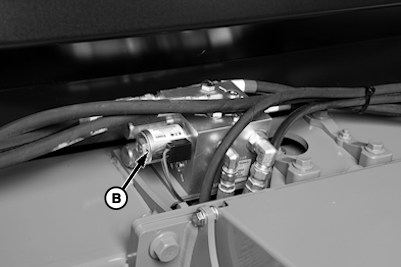

B - Solenoid Valve

The optional Variable Core feature can be used to lower the core density of the bale or can improve bale starting in long, stiff, cane-type crops. This feature uses the monitor-controller in conjunction with the bale diameter sensor (A) and solenoid valve (B) on the tensioning control valve to reduce hydraulic pressure at the rod end side of the tension and gate cylinders.

The diameter of the soft core can be adjusted 81—142 cm (32—56 in) and is set by entering the desired core dimension into the monitor-controller. The initial factory setting for the variable core is 91 cm (36 in). To adjust the soft core diameter setting.

Pushing the Variable Core Diameter button on the monitor-controller energizes the variable core solenoid. The energized solenoid routes the oil from rod end of tension and gate cylinders through the low pressure relief valve, then back to the base end of the tension and gate cylinders. The lower pressure allows a looser bale to form initially.

When the bale size reaches the variable core diameter setting, preset by operator, the monitor-controller de-energizes the solenoid. Oil from the rod end of the tension and gate cylinders is routed through the adjustable pressure relief valve, then back to the base end of the tension and gate cylinders. Bale formation is then completed at the higher relief pressure. The higher pressure forms tighter and denser outer bale layers.

The tractor selector control valve lever must be in the neutral position. If the SCV lever is in the float position, the variable core feature does not work.
