BaleTrak™ Pro System Component Locations (MegaWide™ Plus Pickup)

The BaleTrak™ system is not used on a 460M or 560M Baler with a regular pickup.

E84090-UN-15AUG17

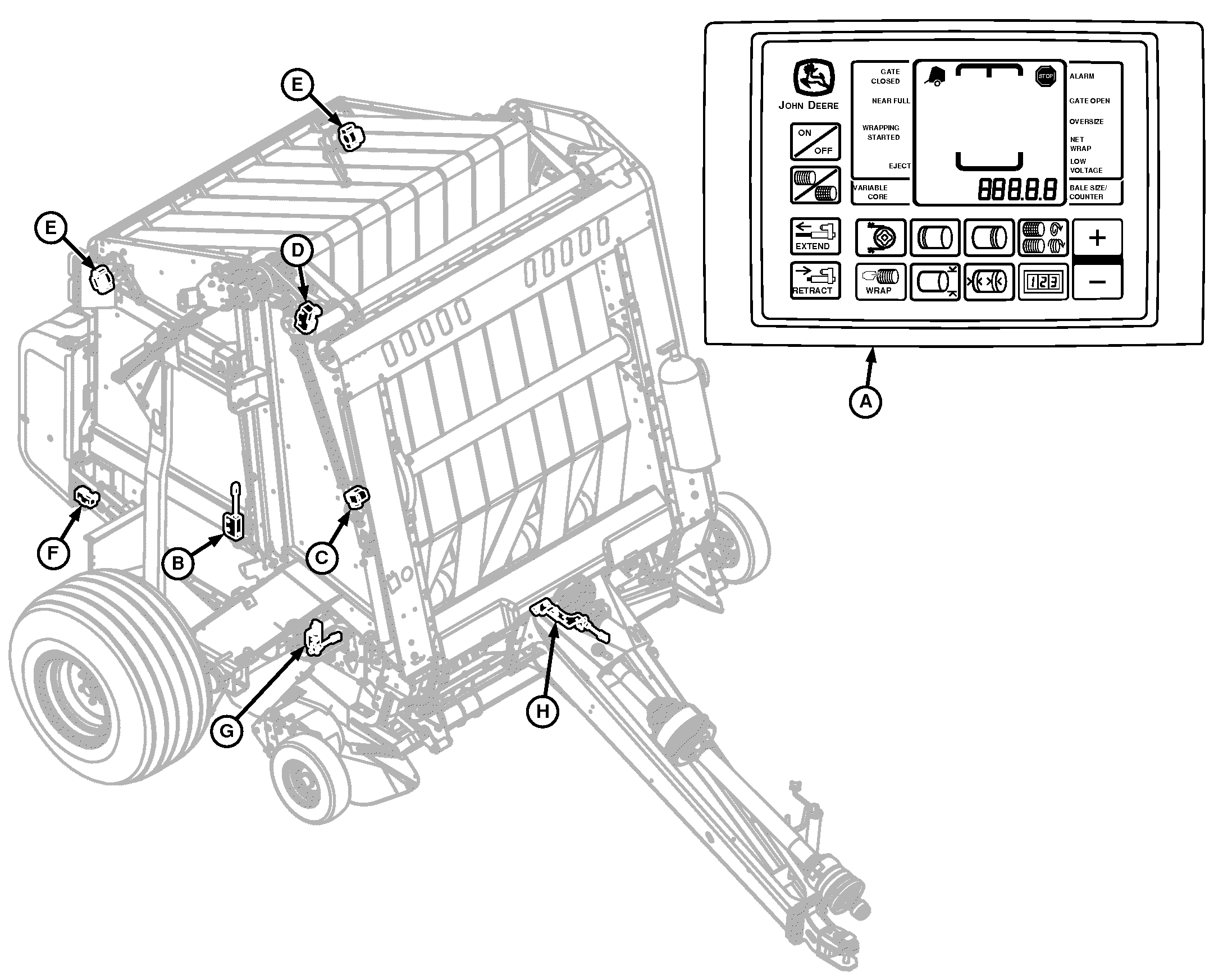

A - Monitor-Controller (on tractor)

B - Gate Latch Switch (left-hand switch not used)

C - Bale Diameter Sensor

D - Oversize Bale Switch

E - Bale Shape Sensors

F - Net Wrap Switch (if equipped)

G - Pickup Slip Clutch Alert Sensor

H - PTO Slip Clutch Alert Sensor
