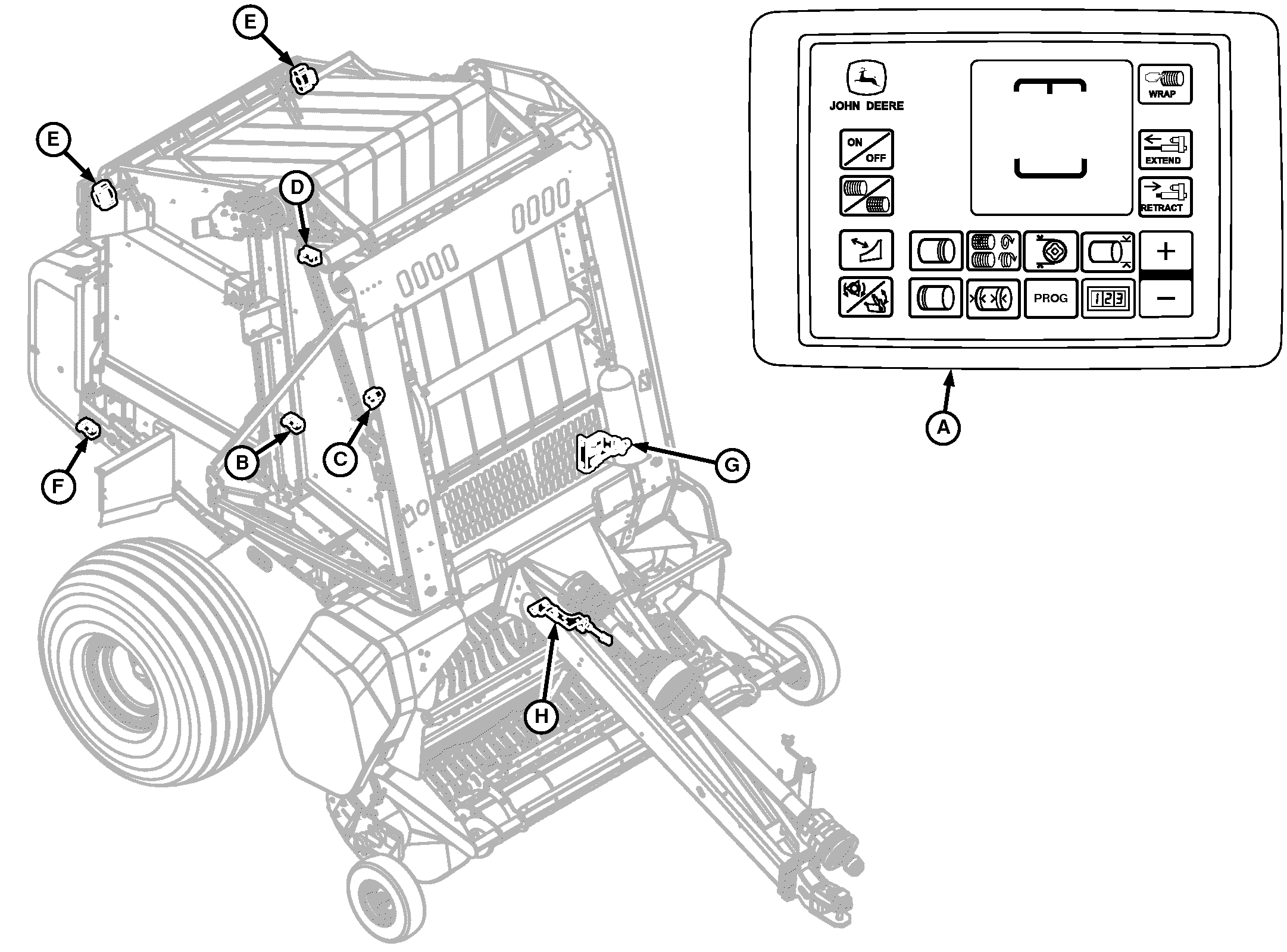

BaleTrak™ Plus System Component Locations (HC2 Feed System)

E84091-UN-15AUG17

A - Monitor-Controller (on tractor)

B - Gate Latch Switch (left-hand switch not used)

C - Bale Diameter Sensor

D - Oversize Bale Switch

E - Bale Shape Sensors

F - Net Wrap Switch (if equipped)

G - Pickup Slip Clutch Alert Sensor

H - PTO Slip Clutch Alert Sensor
