Adjust Take-Up Arm Compression Springs

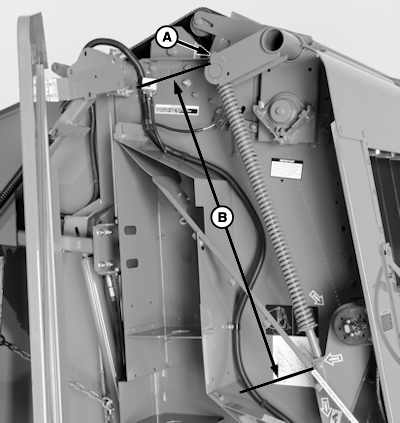

E69503
E69503-UN-21MAR13

A - Stop Nuts

B - Dimension

If springs have been replaced or stop nuts have been removed, adjust springs as follows:

  1. With empty baler, close the gate and lower the tension arm. Remove any wrappage or buildup on rolls.

  2. If forming belts are installed, go to step 4.

  3. If installing springs on baler without forming belts installed, adjust stop nuts (A) until dimension (B) is within specifications.
    Take-Up Arm Compression SpringLength998 ± 1.5 mm (39.3 ± 0.04 in.)

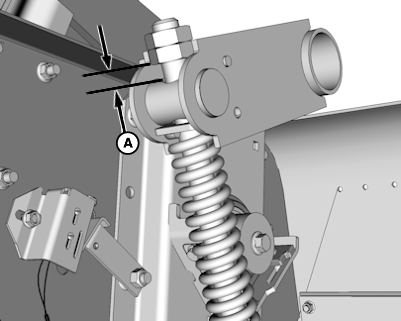

  4. E69504
    E69504-UN-21MAR13

    A - Gap

    With forming belts installed, adjust stop nuts until gap (A) between nut and pivot is within specifications.
    Nut-to-PivotGap8—12 mm (0.315—0.472 in.)


  5. Engage tractor PTO. Raise and lower the tension arm.

  6. Check gap (A) on the right and left-hand springs. Adjust if necessary.

DP99999,0000E01-19-20170822
