Adjust Belt Tracking

1. Check belt tracking before making any belt tracking adjustments.

   If belts are new and have not been used, add granular oil absorbent (oil dry granules) to simulate crop dust and allow the belts to track freely.

   Check belt tracking with the PTO engaged and tractor at lowest rpm. To apply tension to the belts while checking, hold the tractor hydraulic lever in the gate closing position.

   Light contact with belt guides is acceptable, but belts must not curl against guide straps.

   If an adjustment is needed, slacken the belts by doing the following procedure:

   1. Raise the gate fully so the tension arm is against the stop.

   2. Lower the gate slowly until belts are slack.

   3. Lock the gate.

   4. Shut off the tractor and remove the key.

2.
   E54427-UN-17OCT05

   Without Cover-Edge™ Net Wrap

   A - Cap Screw

   Loosen cap screw (A) and adjust No. 8 roll in the slot with small movements. To observe tracking between adjustments, let the baler run at least 30—40 seconds.

---




3. Check clearance between washer (B) and guide (C) before adjusting belt tracking. (See Check And Adjust Lower Belt Guides [MegaWide™ Plus Pickup]in Service—Net Wrap section.)

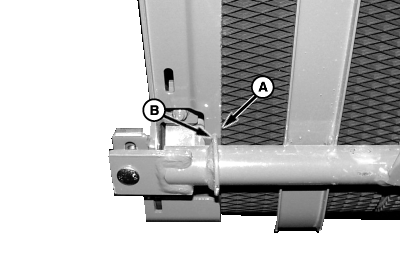

   E85619-UN-27NOV17

   A - Outside Belt

   B - Guide Washer

   Check tracking of outside belts (A) relative to guide washers (B). There must be clearance between the outer edge of belt and guide washer on both sides of baler. Some occasional contact between belt and washer is allowable, but continuous contact is not allowable.

---




4.

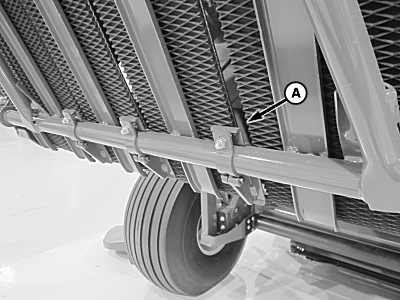

   E84162-UN-22AUG17

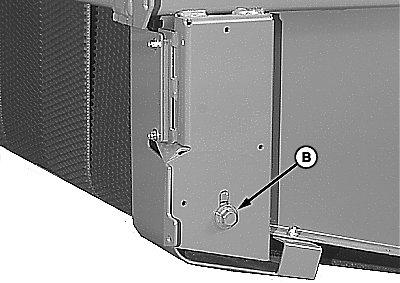

   E48783-UN-10AUG00

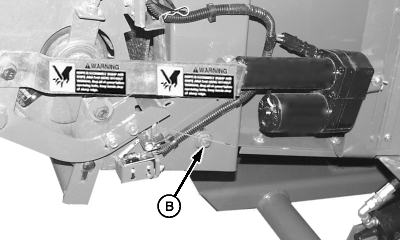

   E48252-UN-08JAN02

   With Cover-Edge™ Net Wrap

   A - Lower Belt Guide

   B - Cap Screw

   If belts are not centered at the lower belt guide (A), make the following adjustments:
   • If belts track to the left:



   1. Loosen cap screw (B) at the right-hand side.

   2. Raise the right-hand end of the lower rear gate roll.

   3. Tighten cap screw (B).

   • If belts track to the right:



   1. Loosen cap screw (B) at the right-hand side.

   2. Lower the right-hand end of the lower rear gate roll.

   3. Tighten cap screw (B).

      After adjustment, be sure neither belt contacts the guide washers continuously as described previously.

      Light contact with the belt guides is acceptable, but belts must not curl against guide straps.

---




5. Tighten cap screw (B) to specification.

   Cap Screw	Torque	140 N·m (105 lb·ft)

6.

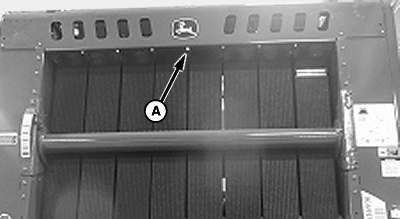

   E83148-UN-22MAY17

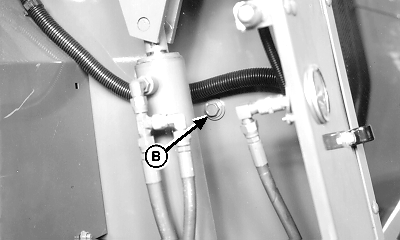

   E39722-UN-09FEB96

   A - Front Belt Guide

   B - Front Idler Roll

   If the belts are not centered at the upper front belt guide (A), make the following adjustments:
   • If belts track to the right:



   1. Loosen cap screw (B) at the right-hand side.

   2. Raise the right-hand end of the front idler roll.

   3. Tighten cap screw (B).

   OR

   1. Loosen cap screw at the left-hand side.

   2. Lower the left-hand end of the front idler roll.

   3. Tighten the cap screw.

   • If belts track to the left:



   1. Loosen cap screw (B) at the left-hand side.

   2. Raise the left-hand end of the front idler roll.

   3. Tighten the cap screw.

   OR

   1. Loosen cap screw at the right-hand side.

   2. Lower the right-hand end of the front idler roll.

   3. Tighten cap screw (B).

---




7. Tighten cap screw (B) on both ends of the roll to specification.

   Mounting Cap Screw	Torque	140 N·m (105 lb·ft)

8.

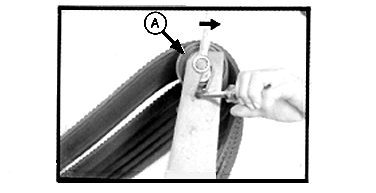

   E39725-UN-09FEB96

   A - Take-Up Roll

   If belts are not centered at the upper rear guide, make the following adjustment:
   • If the belts track to the right, move the right-hand end of the take-up roll (A) in the direction shown in the short leg of the L-shaped slot.
   • If the belts track to the left, move the left-hand end of the take-up roll (A) in the direction shown in the short leg of the L-shaped slot.
   • Tighten the cap screw to specification.

     Mounting Cap Screw	Torque	140 N·m (105 lb·ft)




---




9.

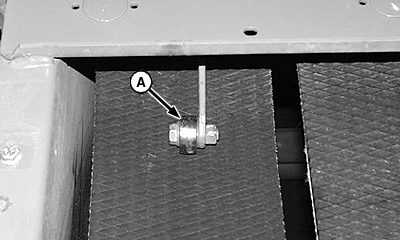

   E47618-UN-07JAN00

   Left-Hand Side Shown

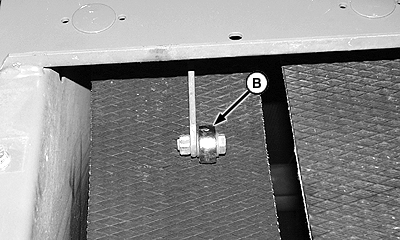

   E47619-UN-07JAN00

   A - Roller (Normal Outside Position)

   B - Roller (Inside Position)

   If outside belts track to the outside, rubbing the lower belt guide or side of baler, adjust as follows:
   • Move the roller from the normal outside position (A) on the sender arm to the inside position (B). The belt then tracks towards the middle of the baler.



---
