Set Number of Twine End Wraps

E52445-UN-02JUN08

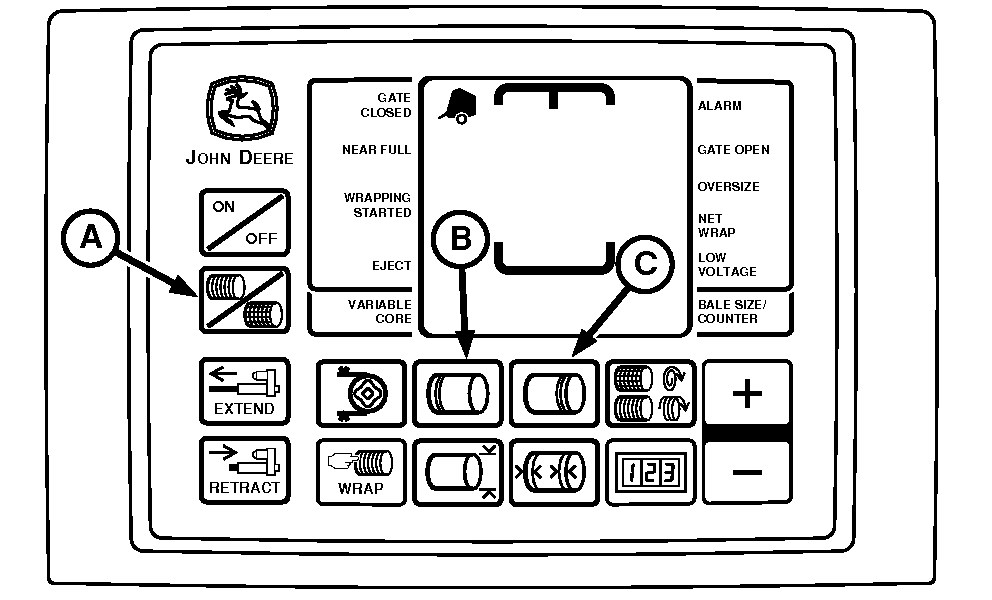

BaleTrak™ Pro Monitor

E84124-UN-28AUG17

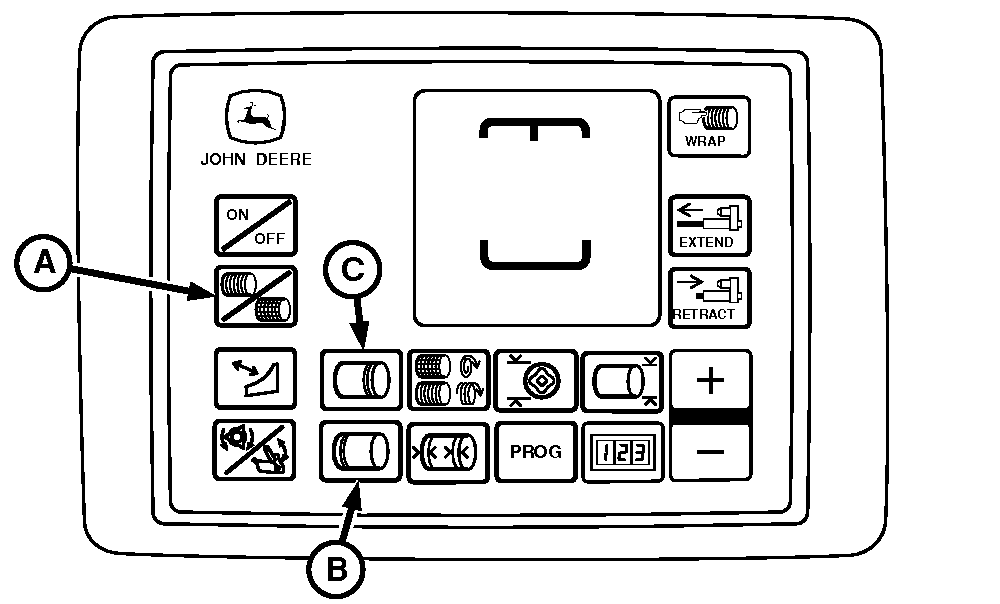

BaleTrak™ Plus Monitor

A - Twine Symbol

B - Left-Hand End Wrap Key

C - Right-Hand End Wrap Key

1. The bale has twice the number of left-hand end wraps, as indicated on the monitor-controller, when the twine contacts the twine guide. (See SET TWINE END WRAP DISTANCE in this section.) The setting for the number of end wraps is approximate for each twine arm.

   If more end wraps are needed, increase the number on the monitor.

   If fewer end wraps are needed, decrease the number on the monitor.

   Turn the tractor ignition key to the ON position. Do not start the tractor engine. Turn the monitor-controller ON.

   The reference number displayed on the monitor for the desired number of end wraps is not the actual number of wraps on the end of the bale.

2. Press the LEFT-HAND END WRAP key (B). Press the PLUS or MINUS key until the desired number of end wraps (0.0—5) appears in the digital display.

3. After six seconds, the setting is entered into memory.

4. Press the RIGHT-HAND END WRAP key (C). Press the PLUS or MINUS key until the desired number of end wraps (0.5—5) appears in the digital display.

5. After six seconds, the setting is entered into memory.

6. Turn the monitor-controller OFF. Turn the tractor ignition key to the OFF position and remove the key.

   The slip clutch alert, if equipped and turned on, supplies the desired number of net wraps regardless of PTO speed.
