Net Switch Indicator

E52630-UN-20SEP06

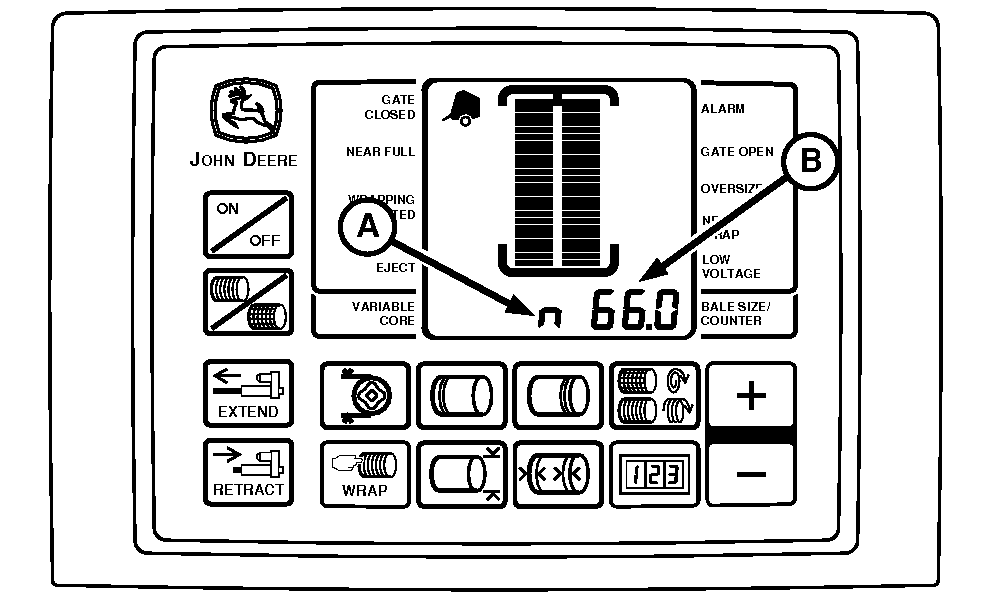

A - n

B - Bale Size

In the net mode while applying net material, when the net switch is depressed, an n is displayed at the left end of the bale size value in the digital display. This symbol indicates that the net is feeding.

If the n is displayed during normal baling, stop immediately and investigate.
